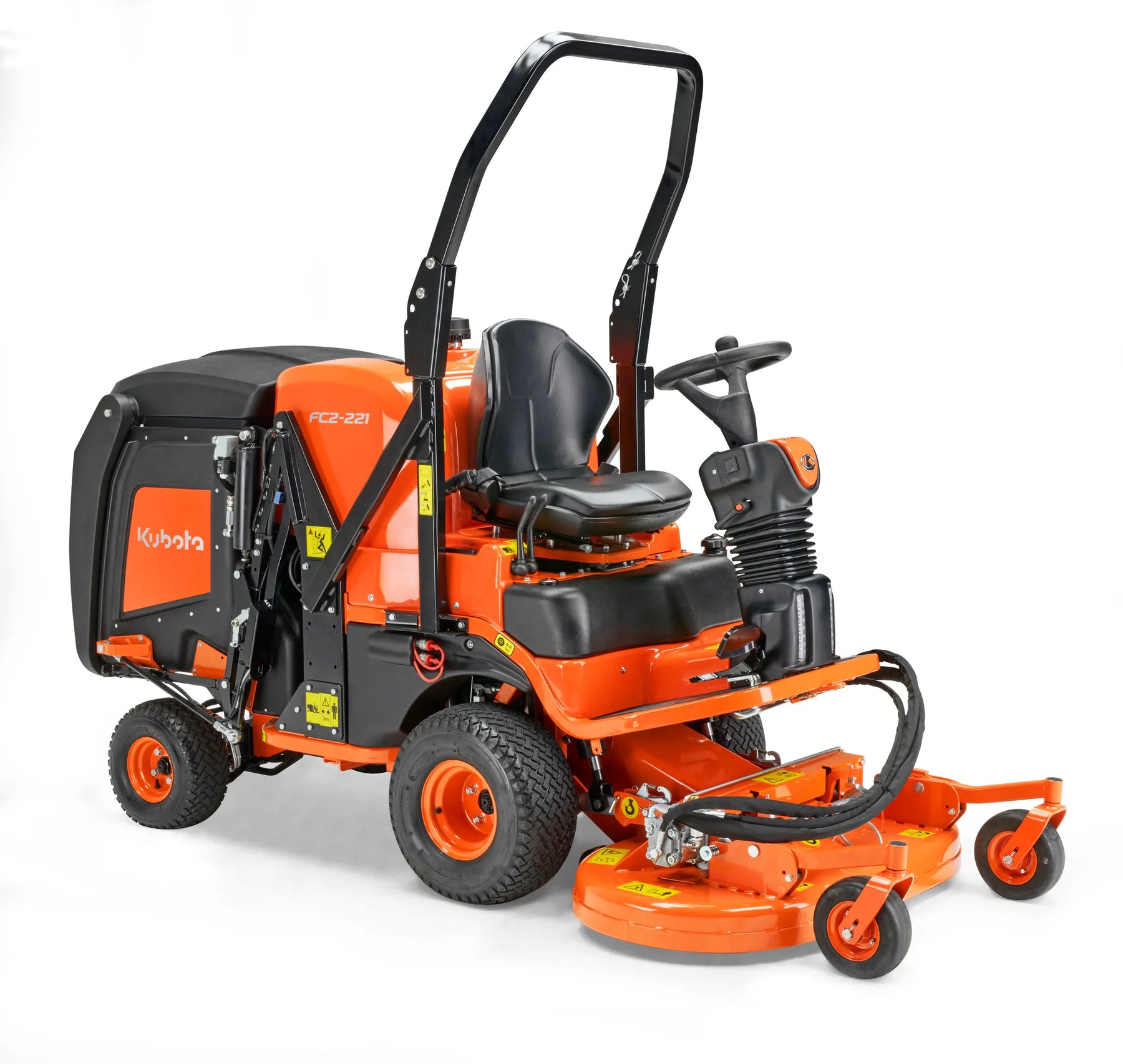

Kubota FC2-221 Outfront Lawnmower

COMPACTNESS ALLOWS FLEXIBILITY AND MANOEUVRABILITY
The compact working dimensions of the FC2-221 allows this machine to operate in areas that for many other machines would not be possible and easy transportation.

Simplicity is the key
The direct transfer of the grass to the collector removes a number of components such as a turbine, impellers and blades. Hydraulic drive to the mower deck also reduces moving parts such as cardan shaft, re-tensioning or replacement of belts and bearings.

4WD-HST drive line. Infinite speed through comfortable pedal control
Permanent 4-wheel drive also ensures that most types of terrain can be operated in comfort and safety. Simply press the forward part of the pedal and the HST transmission will take you to your required speed.

Direct channelling of the grass
The direct discharge of cuttings from the deck to collector is a major change in terms of simplicity and reduced number of components required.

Hydraulic drive to the mower decks
Hydraulically driven decks is another key area in terms of simplicity. Gone are the belts and cardan shafts. Replaced by hydraulic hoses and a hydraulic motor. Attach and detach the implement becomes a breeze!

WORKING COMFORT

• A Deluxe deep padded suspension seat comes complete with adjustable armrests and high backrest.
• The driver can adjust the steering wheel individually to a comfortable driving position.
• The mower's rollover protection system (ROPS) ensures a safe working environment.
• Stylish LED lighting provides excellent visibility in the dark.

ENGINE

• Kubota manufactured unit
• 3-cylinder liquid cooled
• Clean power using the Kubota E-TVCS (Three vortex combustion system)
• In-line fuel injection system
• Radiator screen protection
• Fuel tank capacity of 16 litres
• Easy access for checks and maintenance

DRIVELINE

• Single pedal operation for forward and reverse direction
• Infinitely variable speed up to 10kph
• Patented HTC™ device (Hydrostatic Traction Control)
• Differential lock
• Hand operated parking brake
• 4WD

MOWER DECKS

• Rotary mower - Rear discharge with collector 1.12m (44”) width deck
• Mulching kit option
• Flail mower – No collector available with this option 1.10m (43”) width deck

GRASS COLLECTOR

• High dump Collector (480 litres capacity)
• Hydraulically operated parallelogram system
• Lifting design allows dumping to be carried out effectively and safely
• A “tank full” alarm to prevent overload
