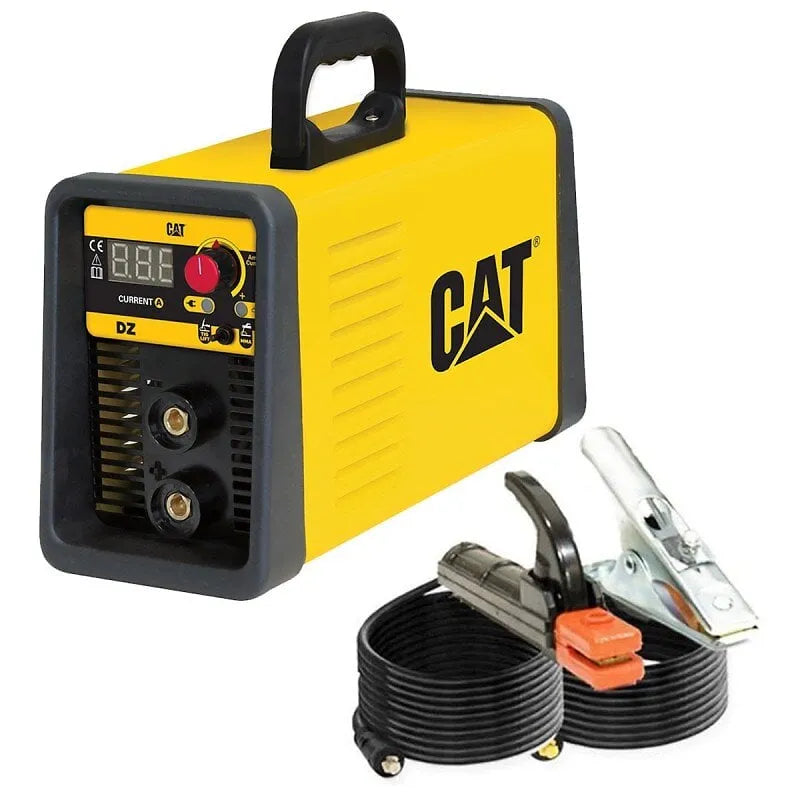

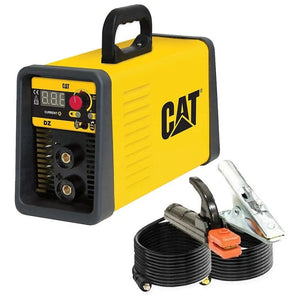

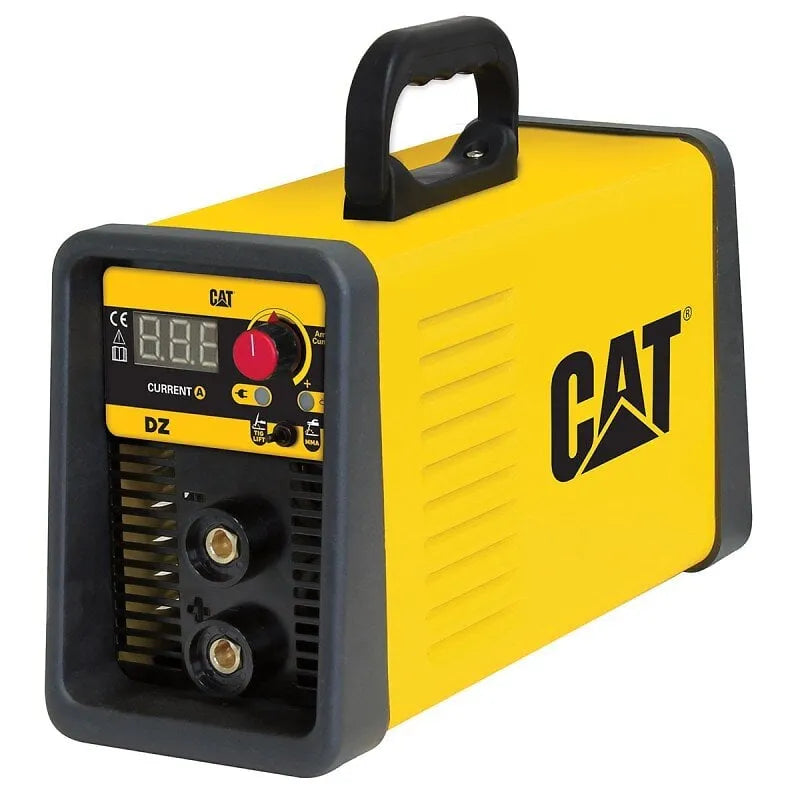

CAT Inverter Welder 160A
Finance Options
1/3
CAT Inverter Welder 160A is backordered and will ship as soon as it is back in stock.
Notify Me
Simply enter your email address and we will notify you when this product is back in stock
Pickup available at Moynehall Retail Park
Usually ready in 24 hours
Delivery and Shipping
Delivery and Shipping
At Clarkes of Cavan, we are passionate about getting your order to you quickly and safely and we understand it is important for you to know when your order will be delivered.
Free delivery on orders over €99 applies in most cases (Ireland), where a product is excluded from this it will be noted on the product page. Some items are large and cannot be sent for free. Standard delivery costs apply to all other countries.
You will be provided with tracking information so you can keep an eye on your order at all times. Delivery of Bulk items (Pallet) may take a day or two extra.
Return Policy
Return Policy
We offer an exchange or refund on goods purchased online, and returned 14 days after purchase.
CAT Inverter Welder 160A is backordered and will ship as soon as it is back in stock.
Description
Description
The DZ161 MMA/TIG welder offers unparalleled welding characteristics and complies with the requirements of the globally recognized brand. Its INVERTER technology with IGBT control meets specifications intended for demanding professionals. This welding station has 3 functions for quality work:
- Arc force: allows you to obtain a more stable arc.
- Hot start: makes it easier to strike the electric arc.
- Anti-stick: automatically switches off the welding generator in the event of an electrode sticking to the material to be welded.
Equipped with temperature sensors, digital display on LCD screen on front panel, variable amperage control with digital meter for simultaneous display of welding current.
The CAT DZ 161 CATERPILLAR welding machine welds all rods with a diameter of 1.6 to 4.0 mm, rutile steel, stainless steel, cast iron, cellulose (6013 - 308 - 7018 - A5.15).
The TIG Lift Arc function of the DZ161 welding station guarantees you exceptional results for your welds on thin sheet metal such as bodywork or thin materials with perfect finishes and guaranteed sealing. Connects with a TIG LIFT torch with DINSE 25 connection (not supplied).
Features:
- Compatible with 7.5 kW generating sets.
- Single- phase voltage: 230 V.
- Absorbed power: MMA 5 / TIG 3.3 kW
- Effective current: MMA 12.9 / TIG 8.7 Amps
- Nominal input current: MMA 28.8 / TIG 19.3 Amps No-load
- voltage V0: MMA - 90 V / TIG 14V
- Welding current: 15-160 Amps
- Duty cycle 40° to standard: 15 / 160 A
- Electrode diameter: 1.6 - 4.0 mm
- Electrode type: 6013 - 308 - 7018 - A5.15
- Insulation class: H.
- Power cable: 2 m.

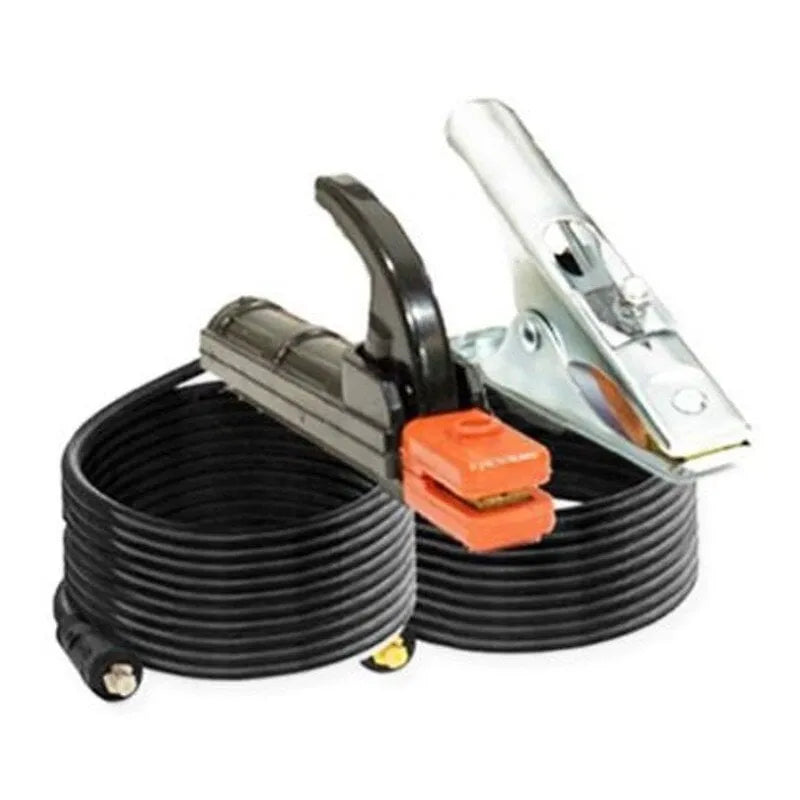

- Ground clamp and electrode holder cables: 1.8 m.
- Station dimensions: 19.5 x 13.5 x 36.5 cm
- Weight: 4.2 kg
