join nowMcHale 994 Bale Splitter Video

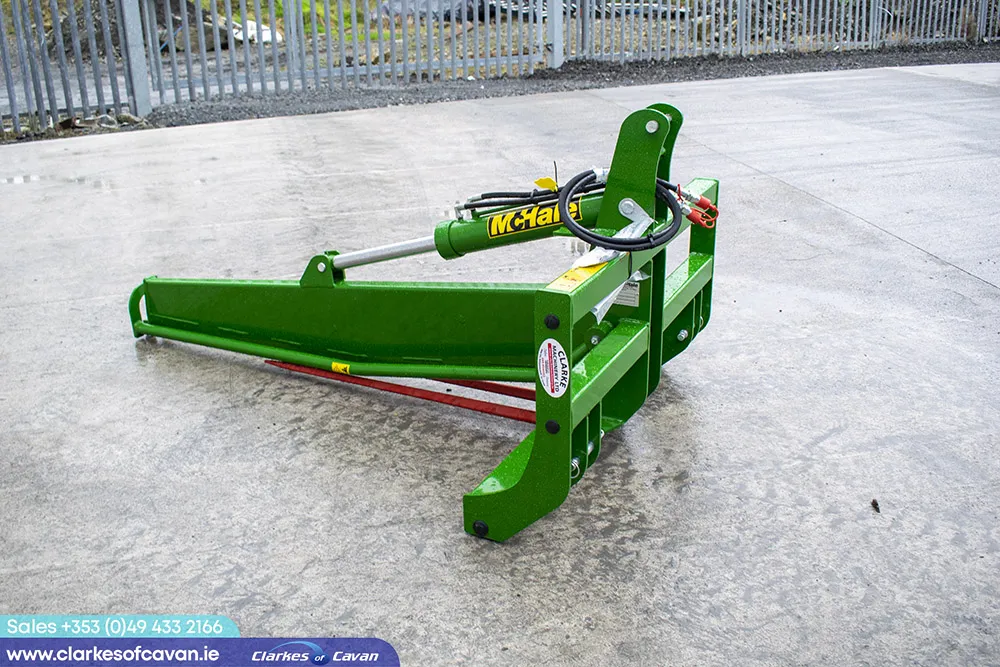

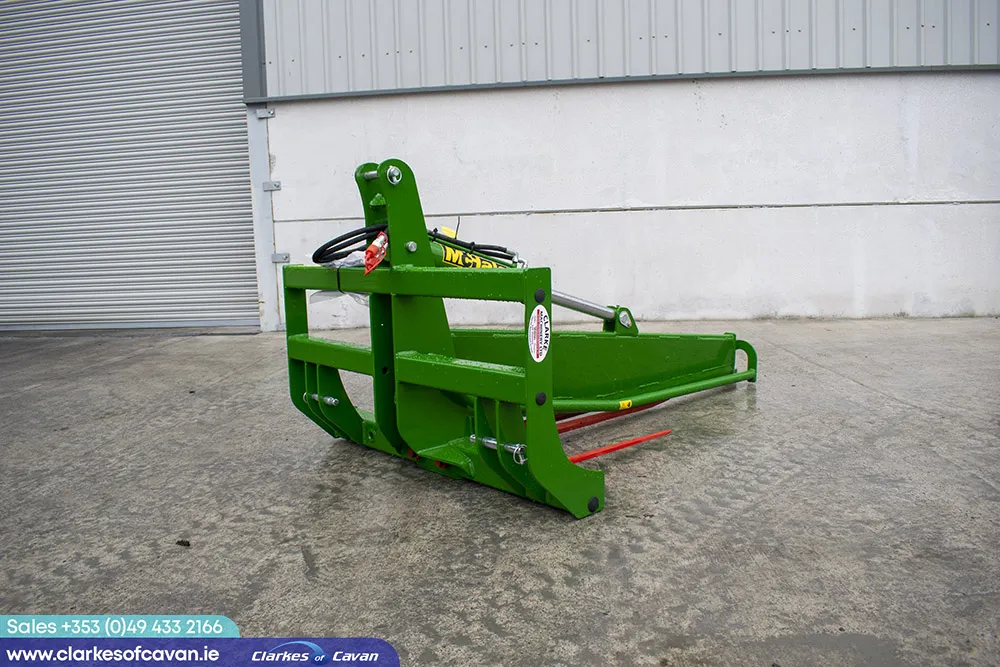

Combining simplicity and strength the McHale Round Bale Splitter cuts bales of silage, hay or straw, quickly, neatly and efficiently.
The McHale 994 round bale splitter is powered by one double-acting hydraulic cylinder with a uniquely designed knife and will securely transport bales from the stacking site to the feeding location.
The operator simply splits the bale as desired in the feeding area or into a Feeder wagon. If the McHale 994 splits the bale in the feed out area, it can also be used to push the bale segments into the feeding location.
The McHale round bale splitter is supplied in a standard configuration as a three point linkage machine and can also be fitted to a tractor loader or industrial handler. Like all McHale products, the McHale round bale splitter incorporates common sense design, quality components and precision engineering to make round bale splitting more efficient.

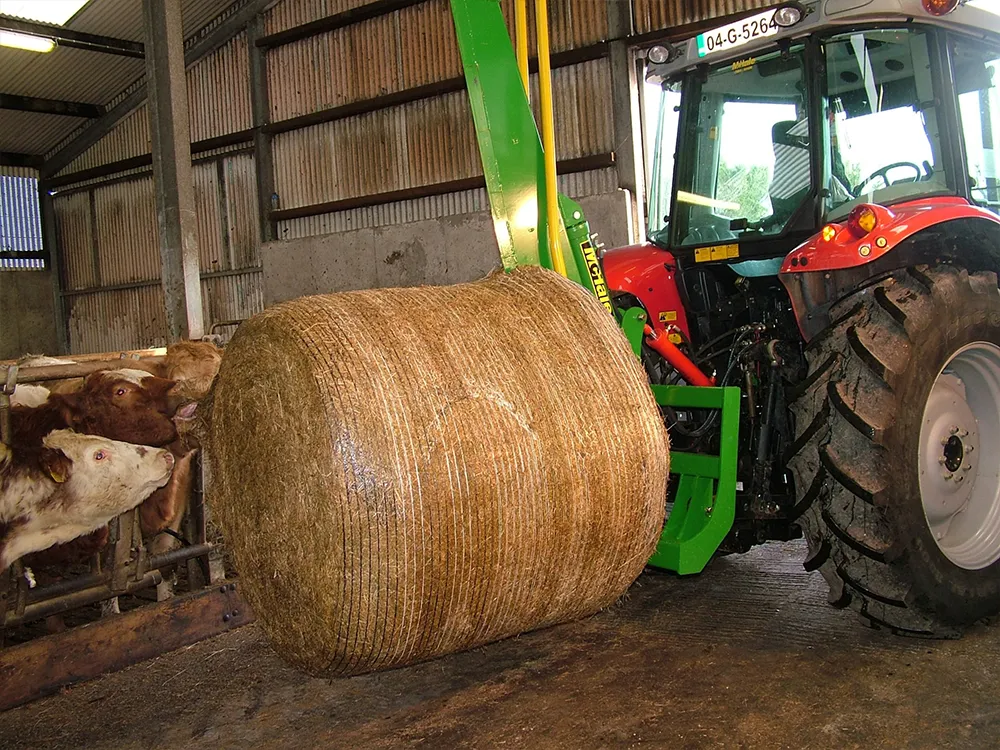

Bale Transportation
With the knife in the upper position the McHale 994 bale splitter can be used to spike the bale and transport it from the stacking area to the feeding area.

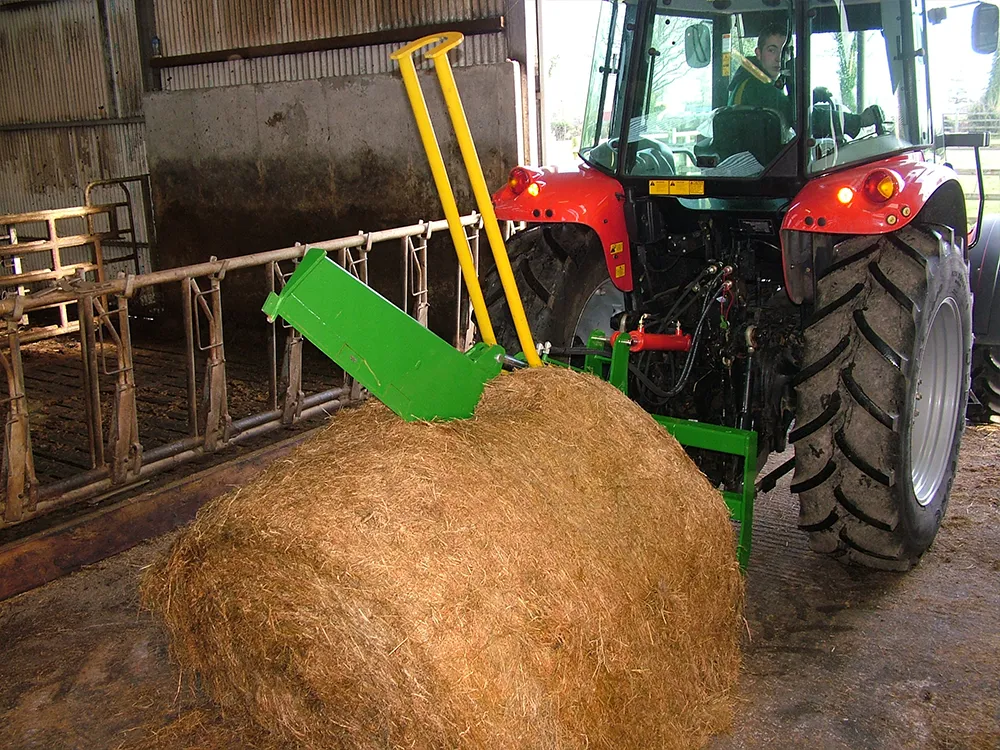

Bale Splitting
Once the bale is transported to the feeding area by the 994, the bale can be split by one simple cut of the specifically designed knife.
Bale Transportation After Splitting

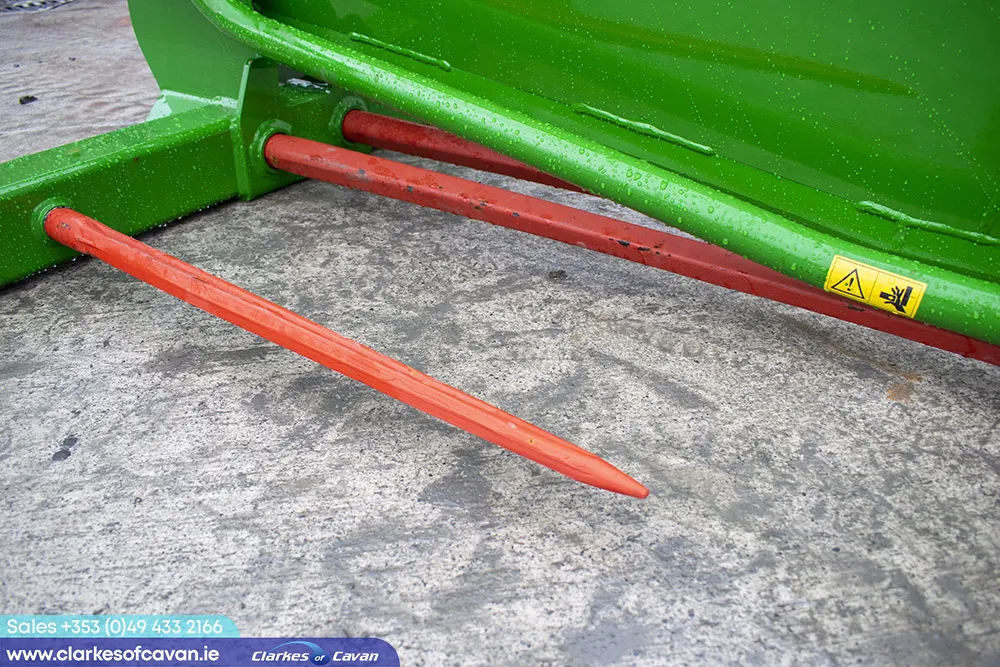

Once the bale is split the tines can again be used to bring the different sections of the bale to different areas in the feed lot.
Splitting Green Chop
The McHale 994 round bale splitter can also be used to split Green Chop.
Splitting Hay or Straw
The McHale 994 round bale splitter can also be used to split hay or straw.
At Clarkes of Cavan, we are passionate about getting your order to you quickly and safely and we understand it is important for you to know when your order will be delivered.
Free delivery on orders over €99 applies in most cases, where a product is excluded from this it will be noted on the product page. Some items are large and cannot be sent for free.
We are proud of our fast delivery process. If your order is placed before 1 pm we will make sure that it is dispatched the same day. You will be provided with tracking information so you can keep an eye on your order at all times.
Some items we sell will take more time because of size and dispatch location. This will be noted on the product page or on checkout.
If you still need further assistance regarding your delivery please contact the online department on 049 433 2166 or via email at online@clarkesofcavan.ie
| Weight | 230 kg / 507 lbs |
| Length (Overall) | 2.05 m / 6’8” |
| Width | 1.25 m / 4’2” |
| Height Open | 2.20 m / 7’3” |
| Height Closed | 1 m / 3’3” |
| Lifting Capacity | 1100 kg / 2425 lbs |

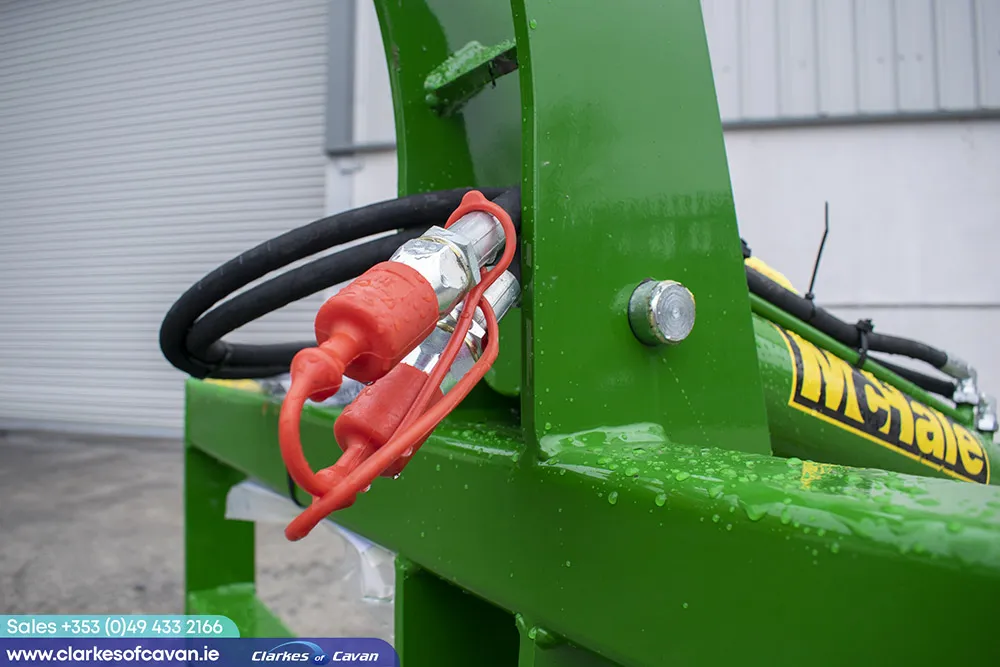

| Hydraulic Requirements | One Double Acting Service |
| Minimum Hydraulic Pressure | 150 bar/ 2250 Ibs/sq.in |
Combining simplicity and strength the McHale Round Bale Splitter cuts bales of silage, hay or straw, quickly, neatly and efficiently.
The McHale 994 round bale splitter is powered by one double-acting hydraulic cylinder with a uniquely designed knife and will securely transport bales from the stacking site to the feeding location.
The operator simply splits the bale as desired in the feeding area or into a Feeder wagon. If the McHale 994 splits the bale in the feed out area, it can also be used to push the bale segments into the feeding location.
The McHale round bale splitter is supplied in a standard configuration as a three point linkage machine and can also be fitted to a tractor loader or industrial handler. Like all McHale products, the McHale round bale splitter incorporates common sense design, quality components and precision engineering to make round bale splitting more efficient.
Bale Transportation
With the knife in the upper position the McHale 994 bale splitter can be used to spike the bale and transport it from the stacking area to the feeding area.
Bale Splitting
Once the bale is transported to the feeding area by the 994, the bale can be split by one simple cut of the specifically designed knife.
Bale Transportation After Splitting
Once the bale is split the tines can again be used to bring the different sections of the bale to different areas in the feed lot.
Splitting Green Chop
The McHale 994 round bale splitter can also be used to split Green Chop.
Splitting Hay or Straw
The McHale 994 round bale splitter can also be used to split hay or straw.
At Clarkes of Cavan, we are passionate about getting your order to you quickly and safely and we understand it is important for you to know when your order will be delivered.
Free delivery on orders over €99 applies in most cases, where a product is excluded from this it will be noted on the product page. Some items are large and cannot be sent for free.
We are proud of our fast delivery process. If your order is placed before 1 pm we will make sure that it is dispatched the same day. You will be provided with tracking information so you can keep an eye on your order at all times.
Some items we sell will take more time because of size and dispatch location. This will be noted on the product page or on checkout.
If you still need further assistance regarding your delivery please contact the online department on 049 433 2166 or via email at online@clarkesofcavan.ie
| Weight | 230 kg / 507 lbs |
| Length (Overall) | 2.05 m / 6’8” |
| Width | 1.25 m / 4’2” |
| Height Open | 2.20 m / 7’3” |
| Height Closed | 1 m / 3’3” |
| Lifting Capacity | 1100 kg / 2425 lbs |
| Hydraulic Requirements | One Double Acting Service |
| Minimum Hydraulic Pressure | 150 bar/ 2250 Ibs/sq.in |
Bales 4ft diameter
Tipper counter-balanced tipping mechanis
Bale Protection Bar Yes
Rotating rollers
Double-acting Hydraulic Ram
Tine Reinforcement
Removable Rollers
Lockable Arms
Can handle Handling Unwrapped Bales
heavy duty ram fitted
Lift 1100kg
Capacity Up to 1.5m bales / Up to 5’ bales
Weight 230kg / 507lbs
Hydraulic Requirements One Double Acting Service
Lifting Capacity 1100Kg / 2425lbs
Pressure 10 tonnes
Blade Double-edged HARDOX blade
Tines 5 x CAT 2 tines
Suitable for silage, hay and straw
FEED ROUND BALES Save up to 20% on feed bills through reducing wastage of feed.
SAVE TIME AND MANUAL LABOUR Reduce time and remove the back-aching work of manually feeding.
FITS TO LOADERS & TRACTORS Very versatile to suit your current machinery. Comes standard with 3 point linkage. Optional Loader Brackets available
NO ELECTRONICS Simple to use and maintain.
