McHale R5 Round Bale Handler Video

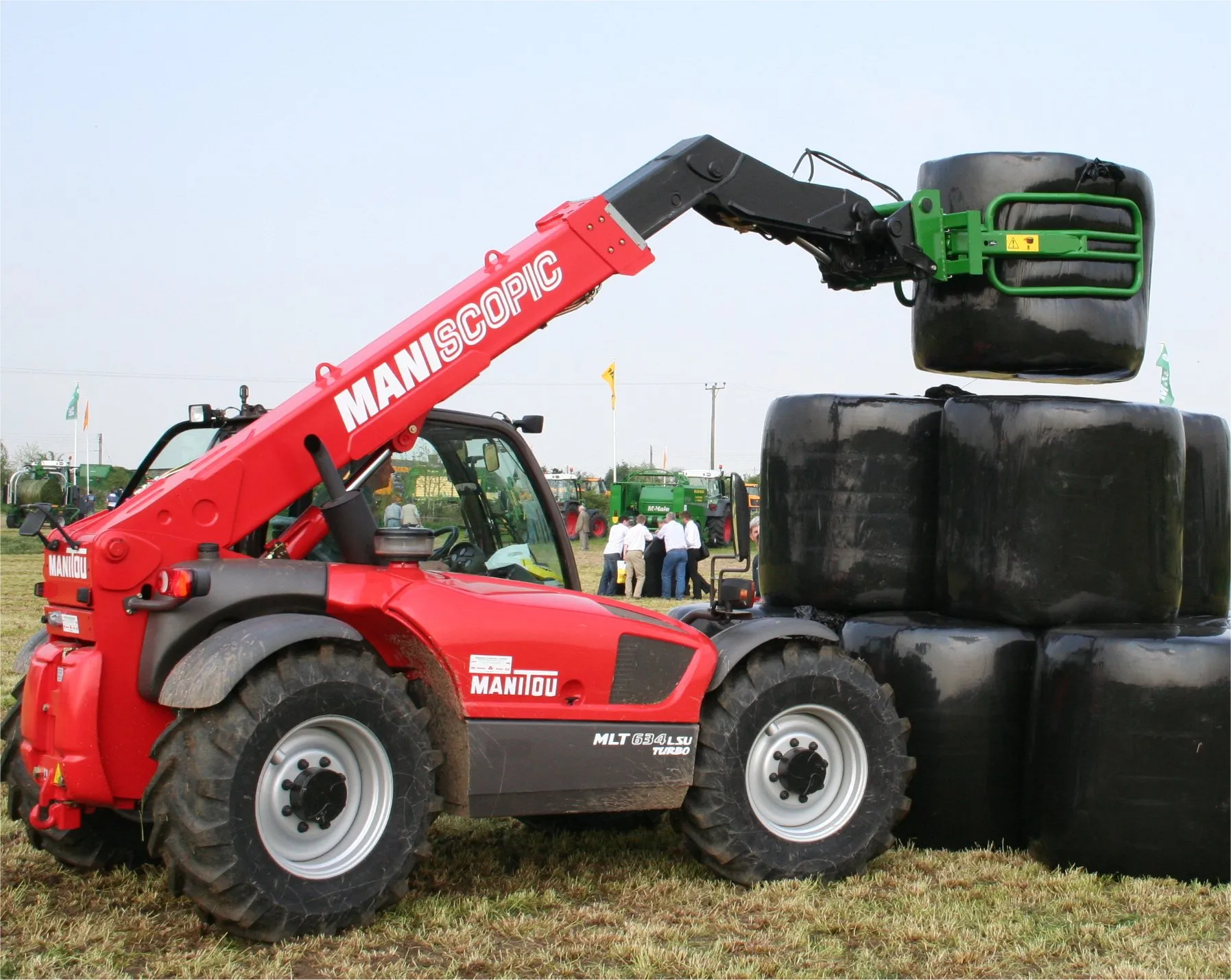

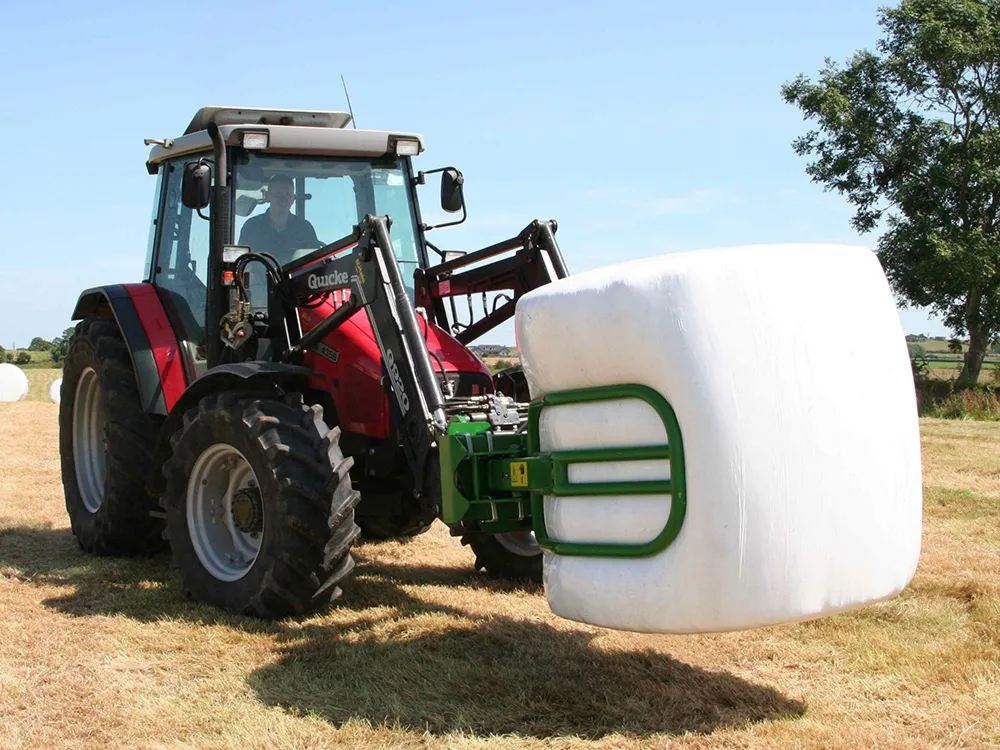

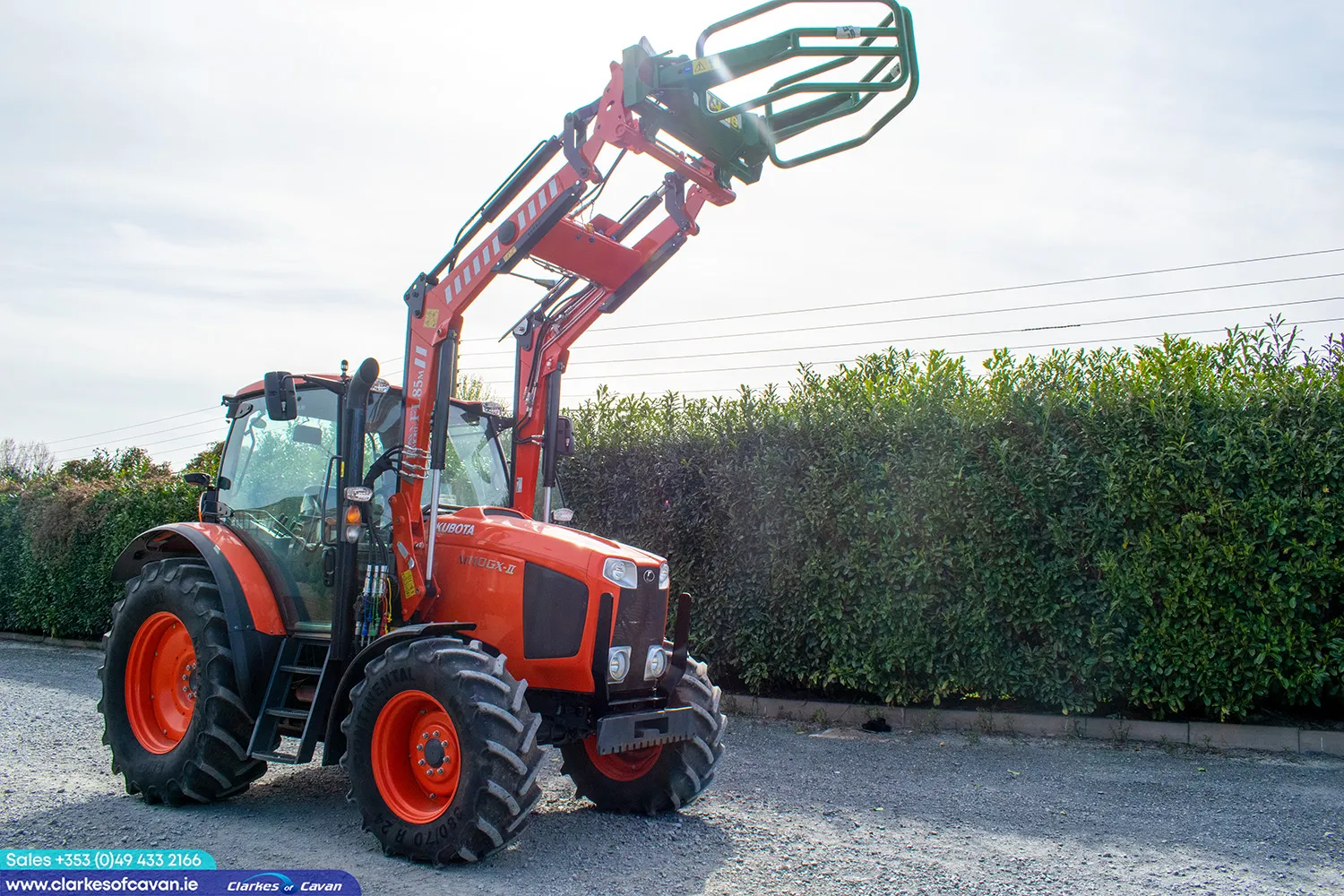

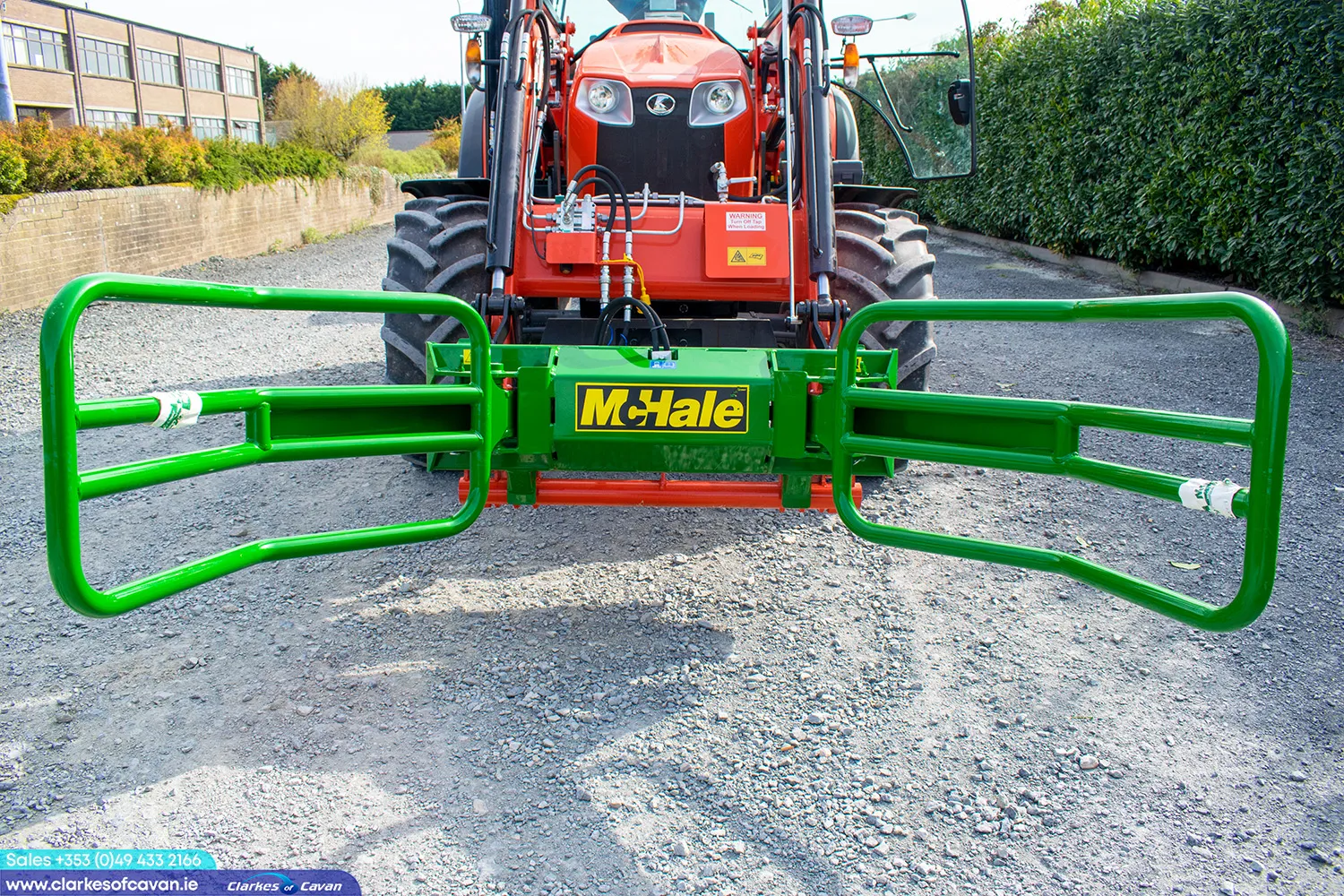

The McHale R5 round bale handler is ideal for collecting round bales, which have been tipped on their ends in the field. The McHale R5 Round Bale Handler can also be used to collect round bales, which have been left normally after a baler and rotate them through 90 degrees and stack them on their ends so that they hold their shape better.
Close Proximity to Loader Carriage

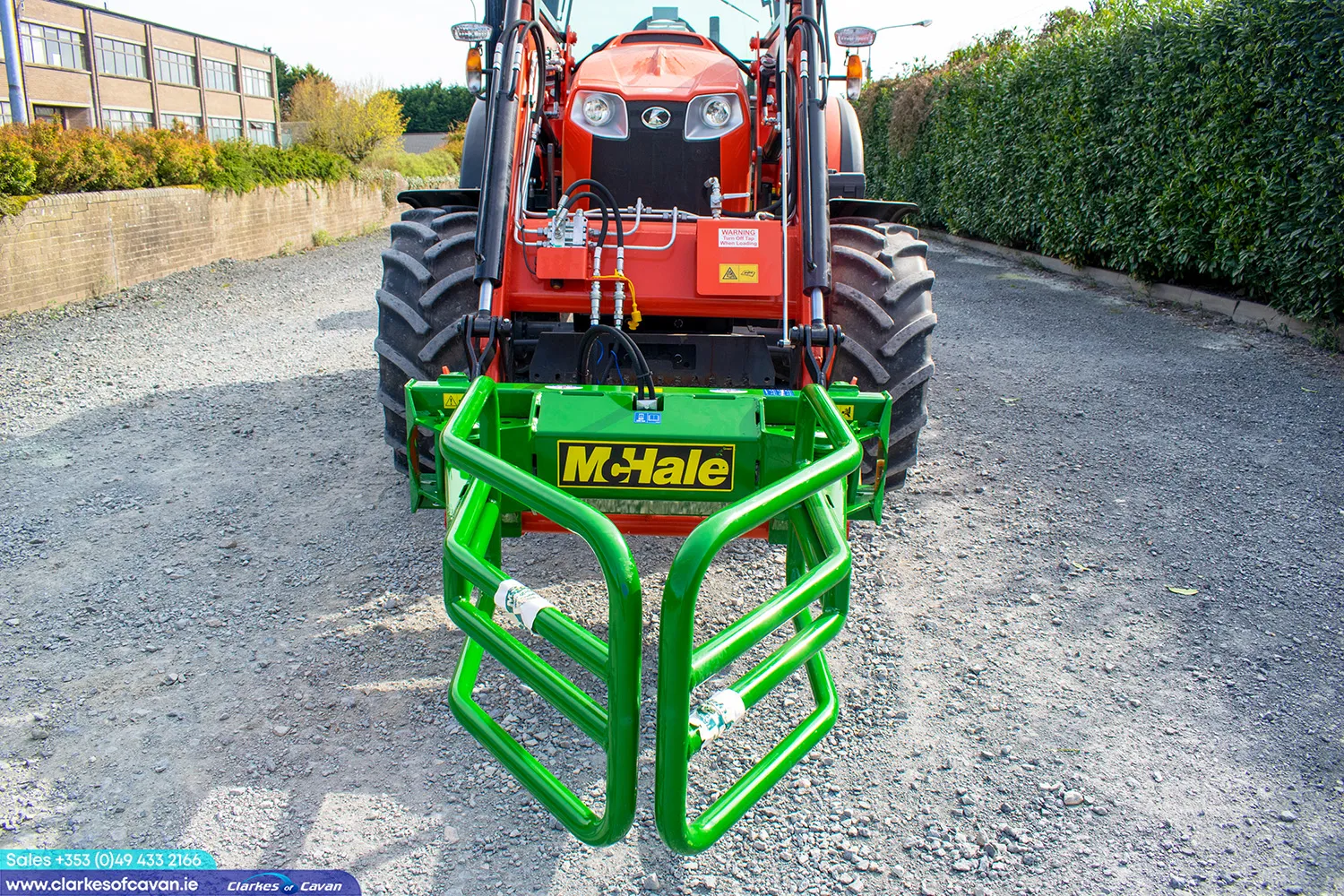

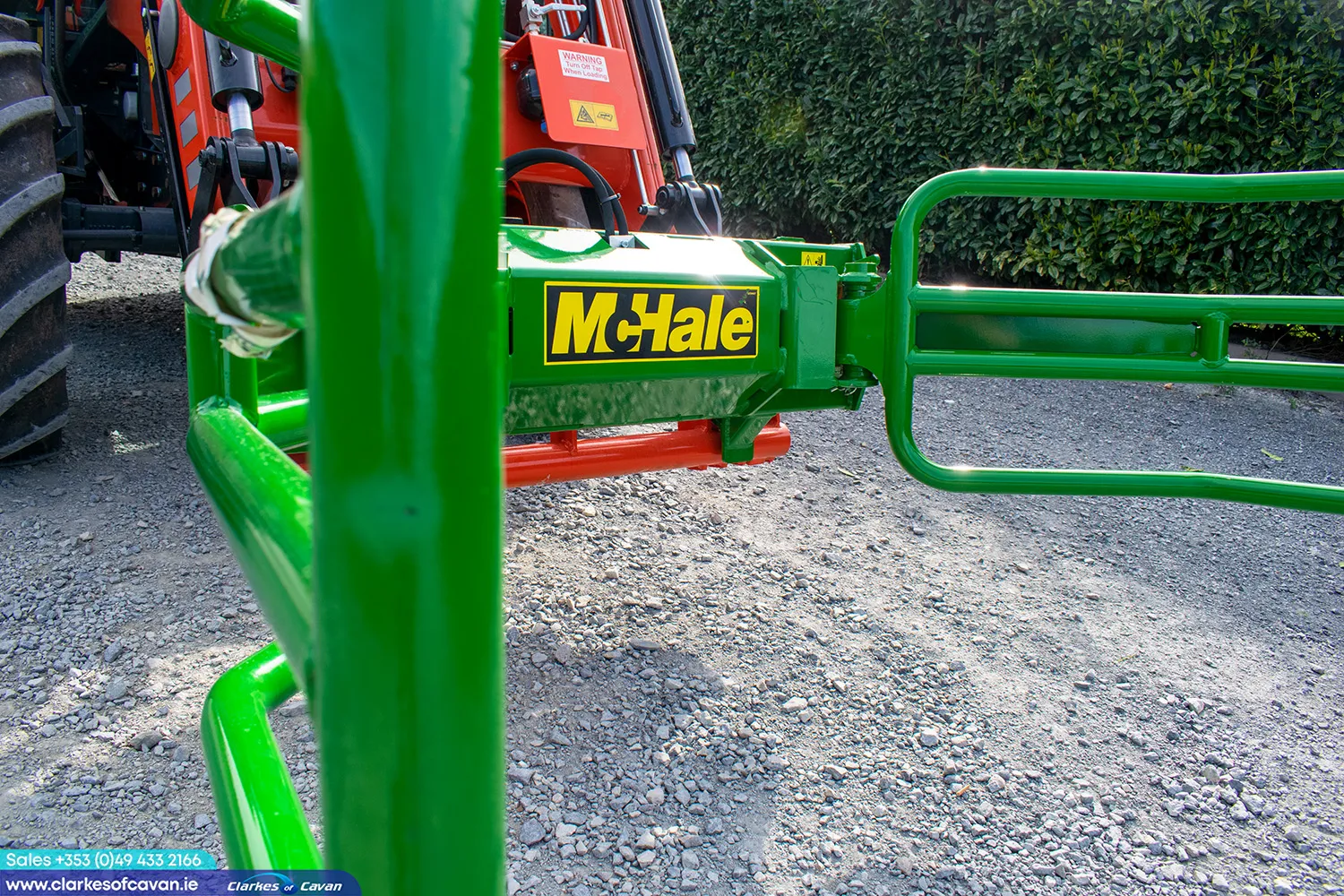

The McHale R5 round bale handler is designed to keep the round bale as close as possible to the loader carriage. This gives better control and balance.
Bale Hands

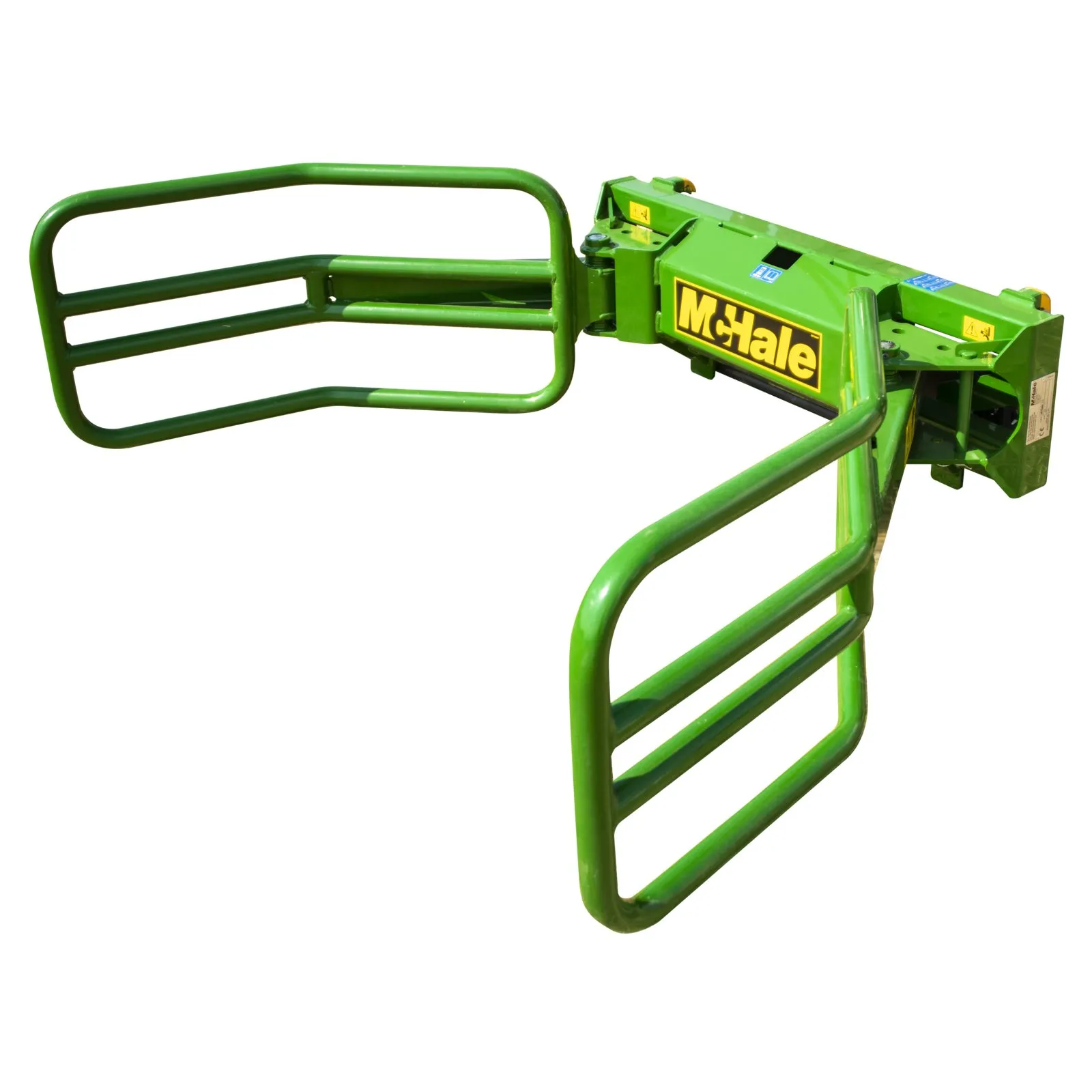

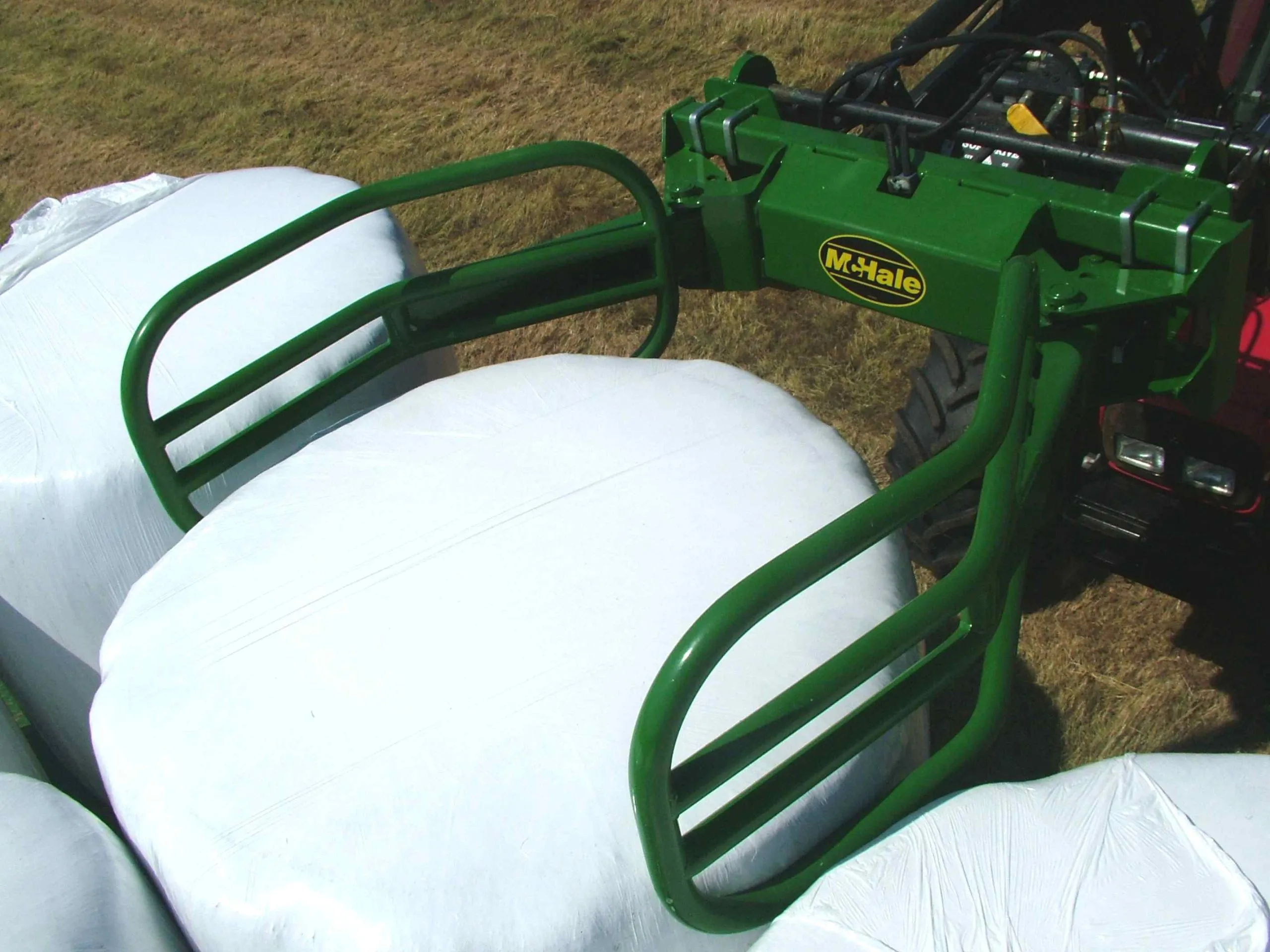

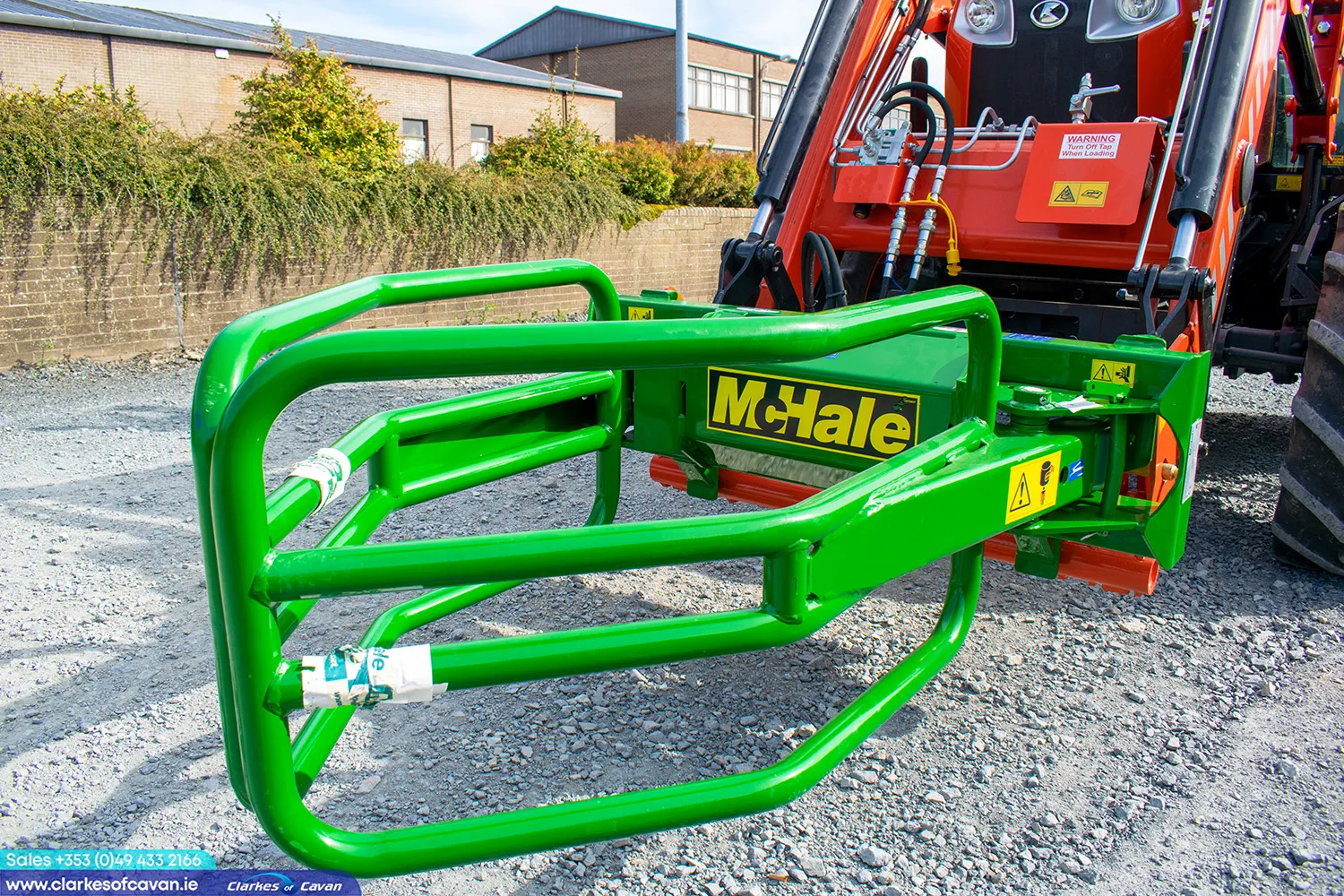

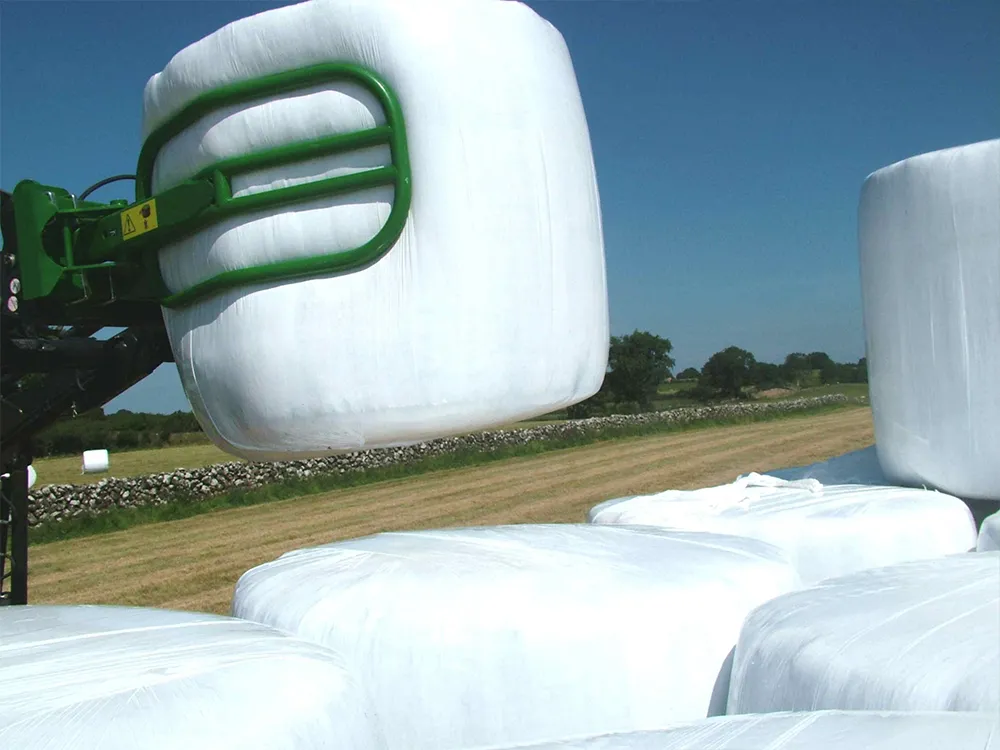

The bale hands on the R5 round bale handler are designed so that they cradle the wrapped round bales without damaging the plastic.
Lockable Arms

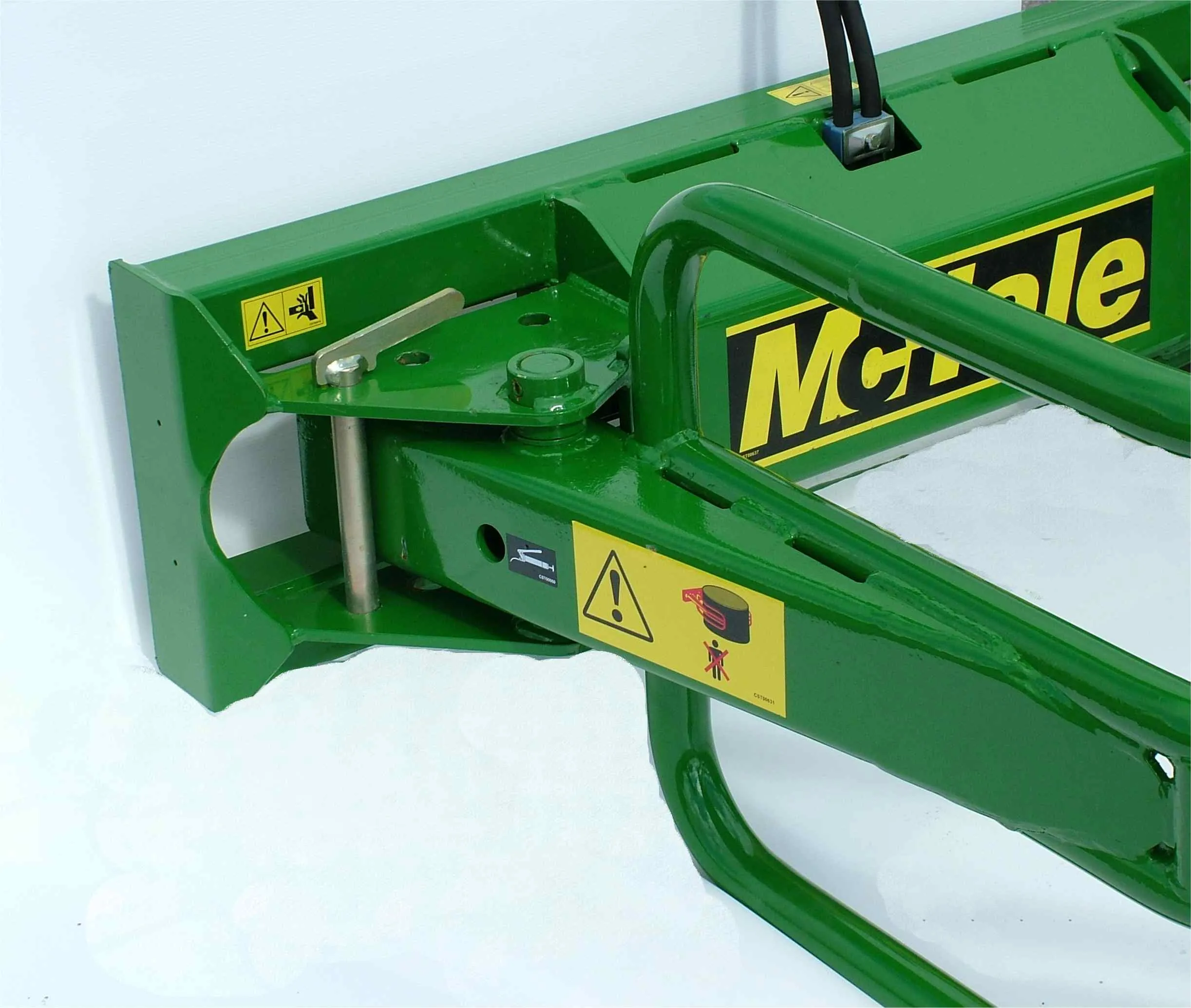

On the R5 round bale handler one of the arms can be locked in position using pins, so only movement occurs in the other arm. This is useful when stacking round bales on a trailer or in confined spaces and sheds.
Handling Unwrapped Bales
The R5 round bale handler can also be used to handle unwrapped round bales or load round bales onto linkage wrappers.
Loading Bales for Transportation

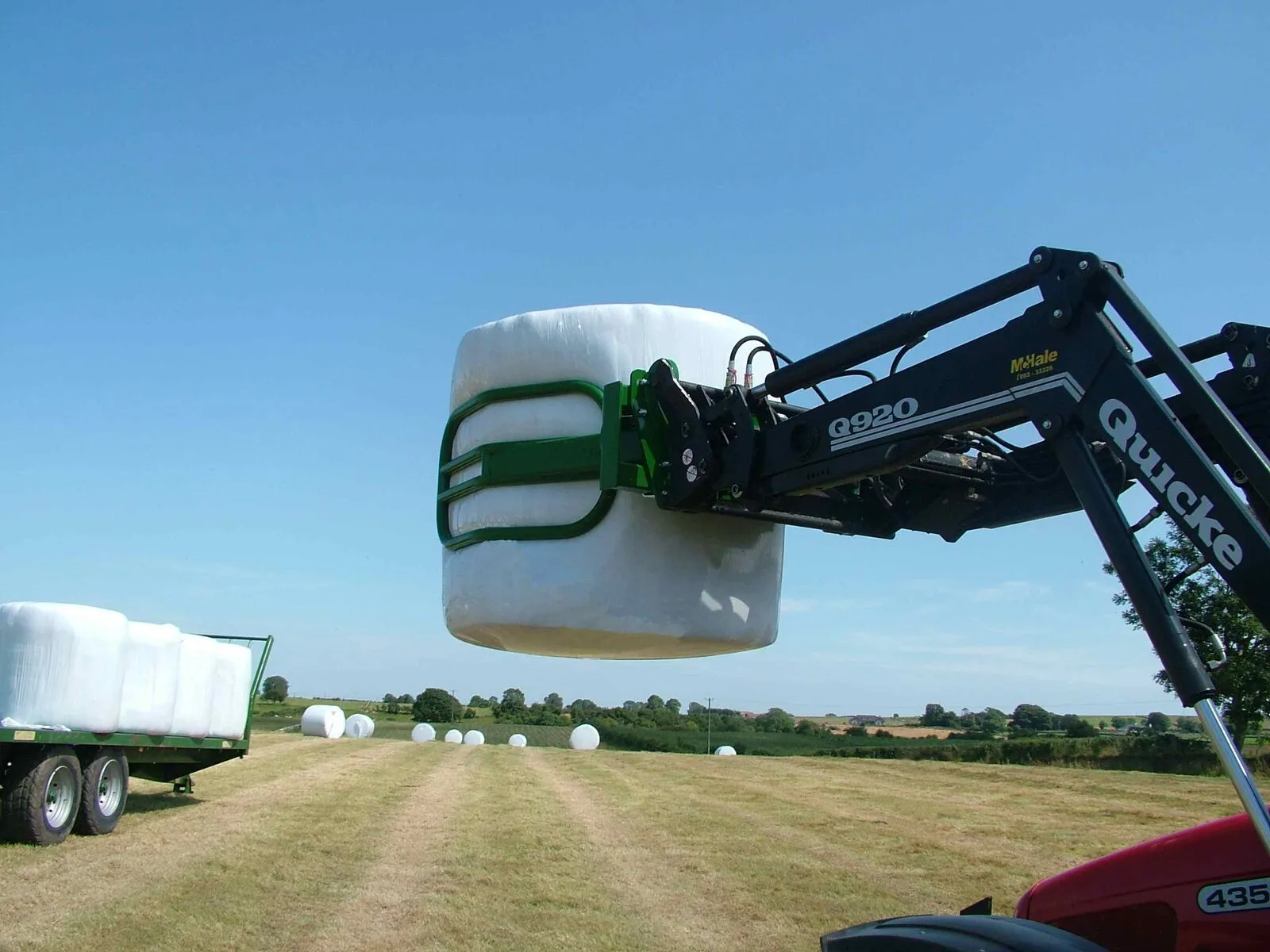

The R5 round bale handler is ideal for loading trailers to take bales to a storage or bale wrapping location.
Loading a Static Wrapping Machine

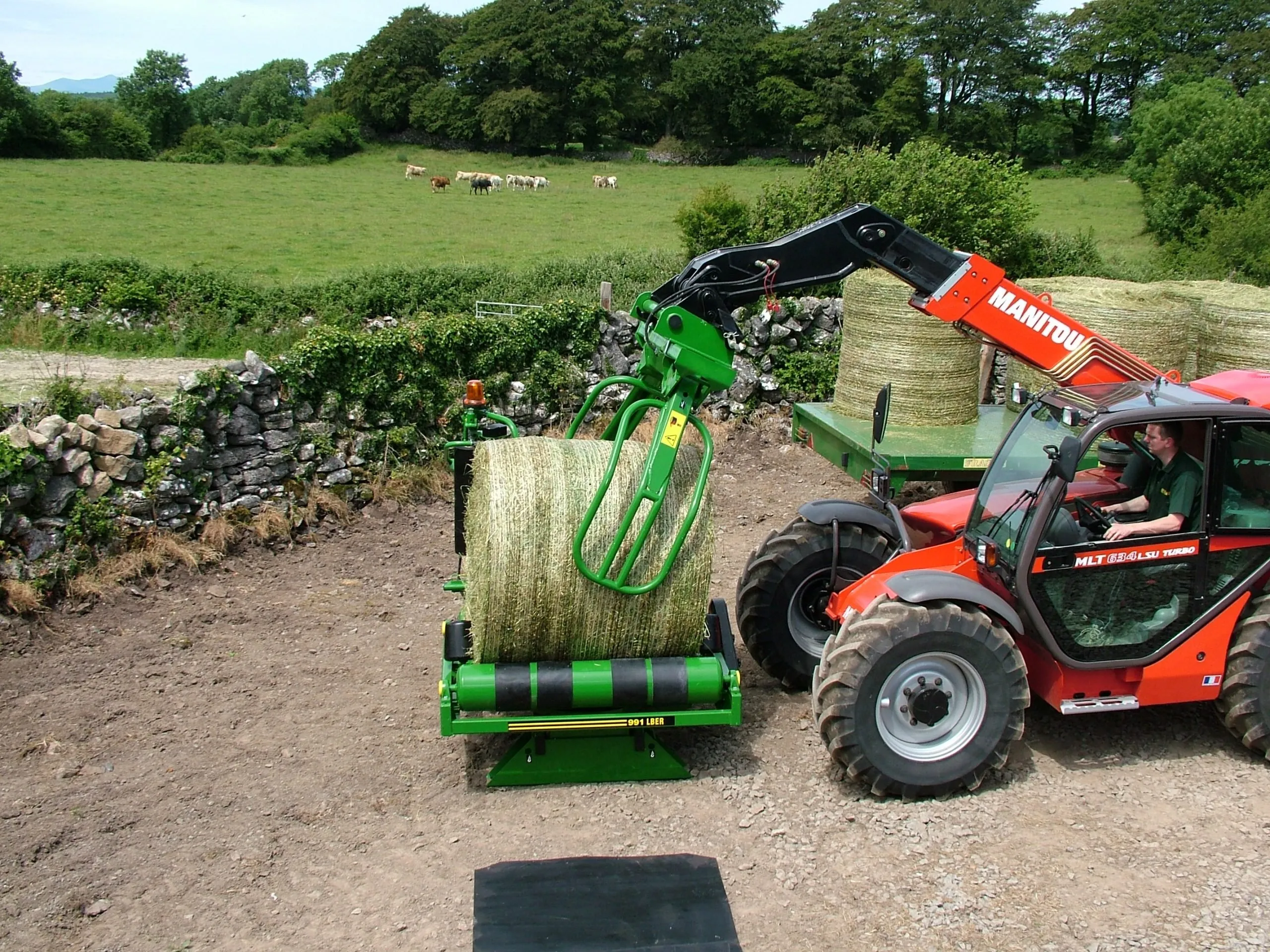

The R5 round bale handler can be used to load a static bale wrapper such as the McHale 991 LBER. Once the bales are wrapped the R5 can rotate them through 90 degrees and stack the round bales on their ends, where there is more plastic and the bales hold their shape better.
Firm Grip

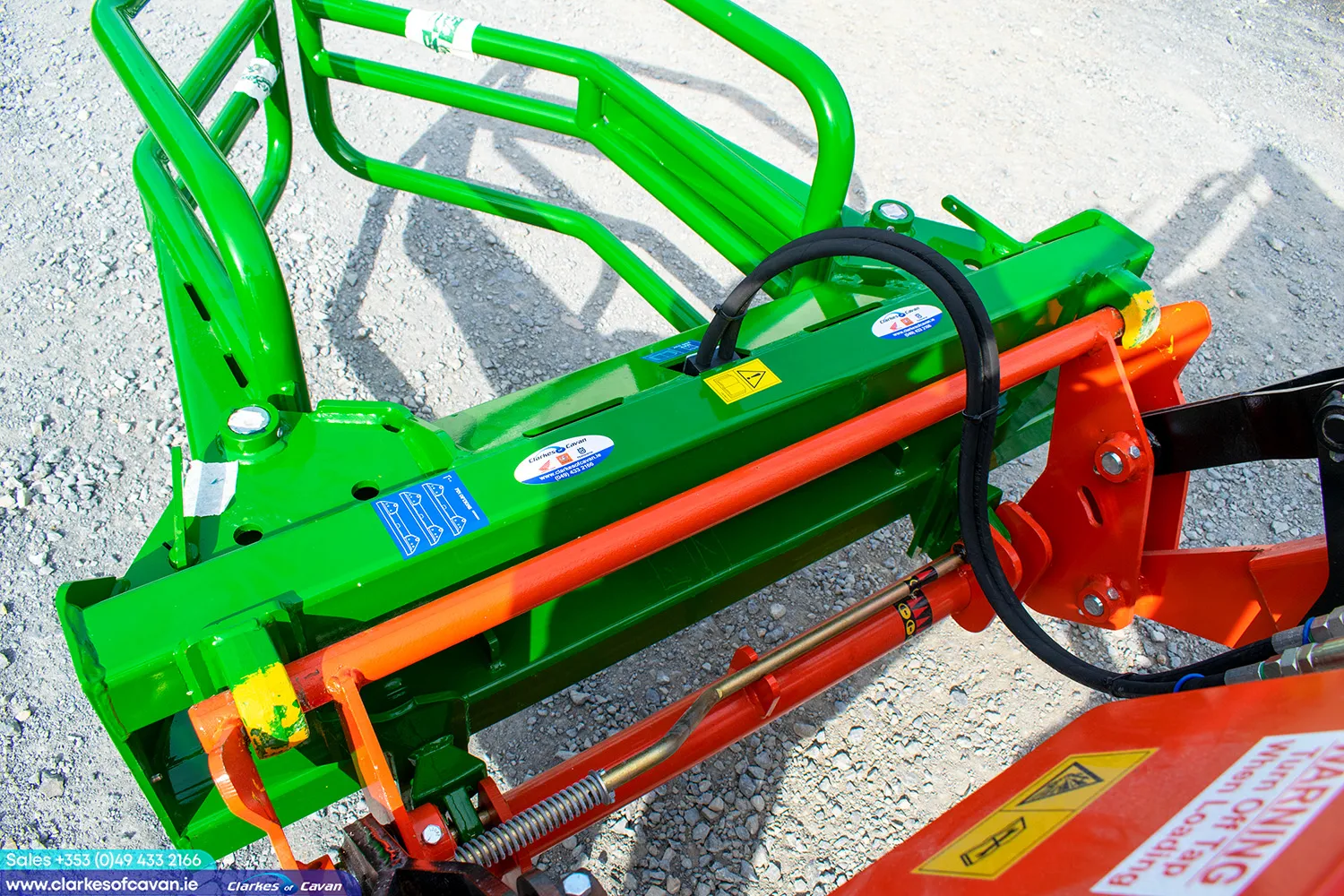

The R5 has a heavy duty ram fitted with a check valve, maintaining a consistent grip of the round bale as it is being transported. This also ensures the loader operator does not have to keep topping up the grip on the loader.
At Clarkes of Cavan, we are passionate about getting your order to you quickly and safely and we understand it is important for you to know when your order will be delivered.
Free delivery on orders over €99 applies in most cases, where a product is excluded from this it will be noted on the product page. Some items are large and cannot be sent for free.
We are proud of our fast delivery process. If your order is placed before 1 pm we will make sure that it is dispatched the same day. You will be provided with tracking information so you can keep an eye on your order at all times.
Some items we sell will take more time because of size and dispatch location. This will be noted on the product page or on checkout.
If you still need further assistance regarding your delivery please contact the online department on 049 433 2166 or via email at online@clarkesofcavan.ie
Weight | 160 kg / 352 lbs |
Height | 0.59 m / 2’0” |
Length (overall) | 1.42 m / 4’7” |
Length of Arms | 1.2 m / 3’11” |
Max Width (Fully Open) | 1.75 m / 5’9” |
Open Distance between the Arms | 1.65 m / 5’5” |
Closed Distance between the Arms | 0.67 m / 2’3” (Closed) |
Lifting Capacity | 1100 kg / 2425 lbs |
Hydraulic Requirements | One Double Acting Service |
Check Valve & Pipes | Standard |
Minimum Hydraulic Pressure | 150 bar / 2250 lbs/sq. in |
