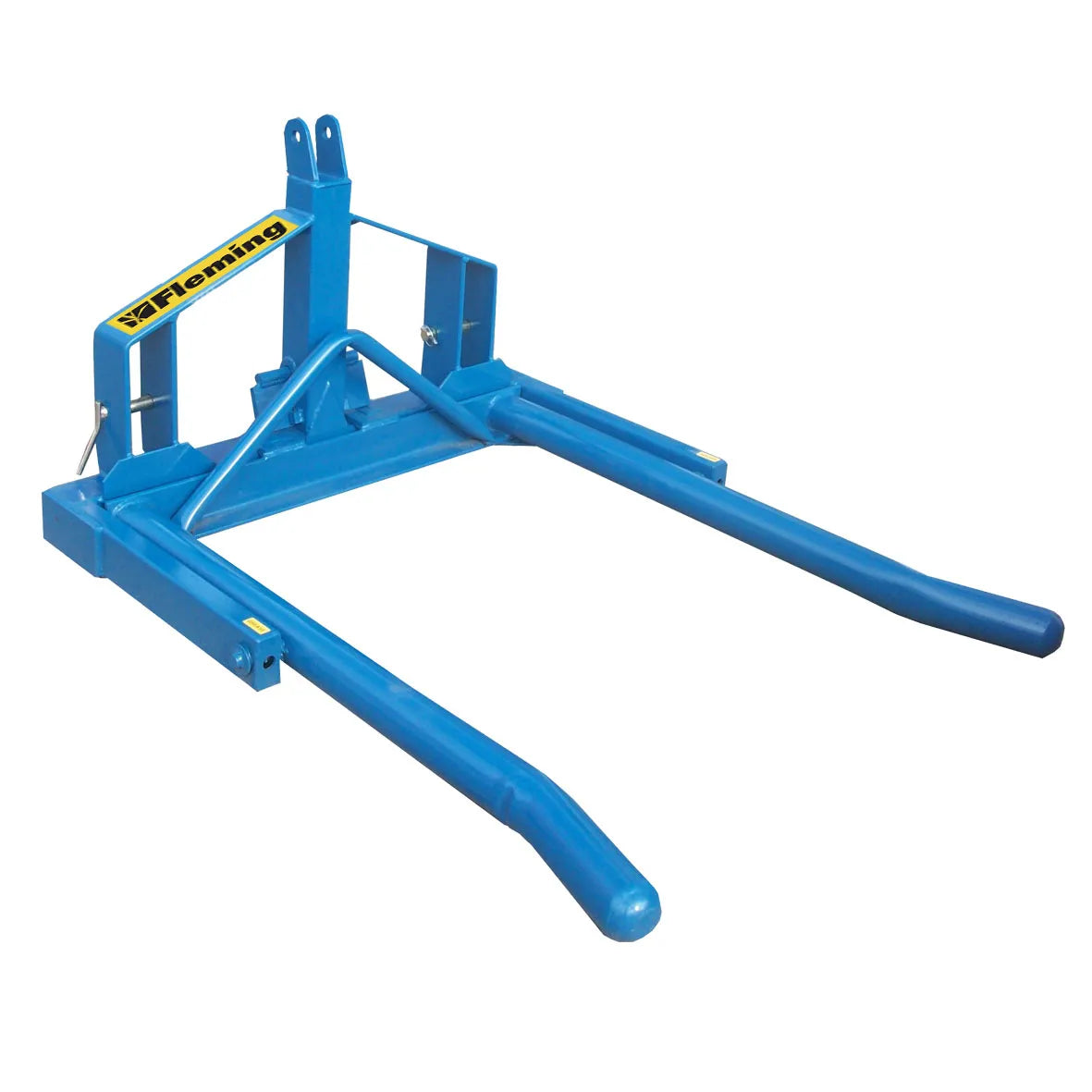

Fleming Manual Single Bale Lifter

The Fleming Agri heavy duty bale tipper stores round bales on their end. The finely counter-balanced tipping mechanism automatically resets after tipping the bale. The bale tipper works well with silage, haylage, hay and straw round bales, both wrapped and unwrapped. As a result it is ideal for larger farms and contracting use. The heavy duty bale tipper has a 100mm structural box frame.

• Designed to transport and tip 4ft diameter bales on their end
• The finely counter-balanced tipping mechanism automatically resets itself after tipping the bale
• Fitted with bale protection bar
• Heavy duty bale tipper is manufactured from 100mm structural box
• All stress points are reinforced to give absolute rigidity for high HP tractors
• Large diameter 90mm carrier pipes with domed ends for better bale protection
• Pipes are splayed for easy bale collection
• Bushed and greased hinge points
• Supplied with Cat. 2 facility and lift pins

Specifications

Width - 1245mm
Length - 1590mm
Height - 770mm
Lift pins - Cat. 2
Opening - 900mm
Frame Thickness - 100mm
​Weight - 124kg
