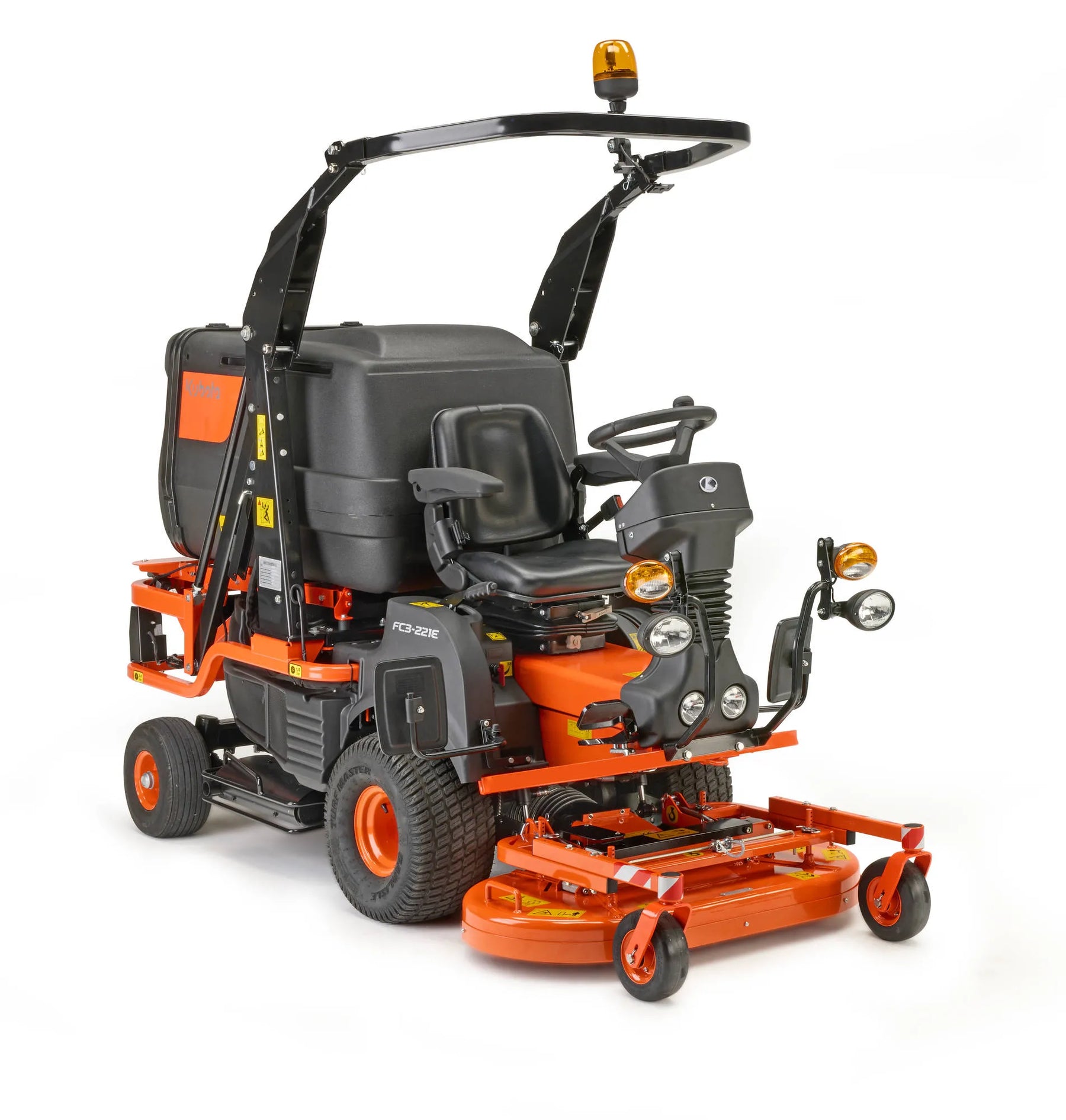

Kubota FC3-261 Outfront Lawnmower

THE COMFORTABLE WORKHORSE
The robust large-area Kubota FC3-261 offers high working comfort and cutting performance for mowing large lawns.

Highly productive work
The optimised workplace with a high level of operator and driving comfort leads to increased work productivity.

Centre collect with suction turbine
The centre collecting system via a turbine is very efficient and provide excellent collecting quality.

Excellent traction
The patented HTC™ hydrostatic traction control system ensures excellent traction in all conditions.

Convincing performance
The liquid-cooled, 3-cylinder diesel engine is fuel-efficient, has low emission and is easy to maintain.

Highly productive mowing
Depending on the needs, there is a choice between powerful rotary decks and flail mower decks.

Large capacity
The grass collector impresses with a capacity of 800 litres.

Working comfort

• The monocoque platform is mounted on silent blocks that ensure less vibrations are transmitted to the operator.
• The Deluxe driving seat has a reclining backrest and adjustable armrests.

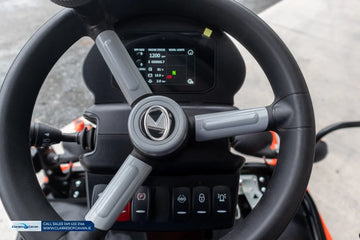

• The driver can adjust the steering wheel individually to a comfortable driving position.
• The mower's rollover protection system (ROPS) ensures a safe working environment.
• LED lights on the front and side provide excellent visibility even at night.

Engine

• Kubota's liquid-cooled Kubota D1105 three-cylinder diesel engine with emission level V produces a whopping 26 hp (19.2 kW) from a displacement of 1.123 liters.
• The engine is also fuel-efficient thanks to the Kubota E-TVCS inline fuel injection system.
• The E-TVCS combustion system ensures an efficient combustion process in the engine and reduces noise and emissions.
• The high ease of maintenance of the engine keeps daily checks pleasantly short.
• The 30-liter fuel tank guarantees a large workload without having to refuel.

Driveline

• The patented HTC™ hydrostatic traction control ensures excellent traction under all operating situations.
• Advantages of HTC™: Permanent traction on all four wheels when turning, greater safety for the driver, and no damage to the turf.
• Two pedals control the forward and reverse movement of the mower, which can reach a forward speed of up to 15kph.
• The park brake ensures on incline terrain safe and reliable stopping and parking.
• The differential lock can be used to react quickly to wheel slippage and prevent damage to the turf.

Mower decks

• The two rotary mower decks and the flail mower deck guarantee a clean, precise cut on lawns as well as in dense, tall grass.
• An optional 50'' (1.26 m) wide rotary mower deck and a 51'' (1.30 m) wide rotary mower deck with reverse rotation are available for the FC3-261.
• Swing-back"" twin blades absorb shocks and protect the driveline from being hit by foreign objects in the grass.
• For the optional flail mower deck with a width of 1.35 m (53'') there are different blades for a convincing result.
• The mower deck height is simply adjusted with a lever.

Grass collector

• Perfect combination of a powerful suction turbine and a large-volume grass collector for high-level discharge.
• Fast and smooth collection and discharge of different cut materials.
• The patented suction turbine offers decisive advantages such as a more effective collection process and greater stability of the machine.
• The 800-liter capacity grass collector is conveniently operated from the operator's seat using the single-lever joystick.
• The collection system of the grass collector is fully utilized.
