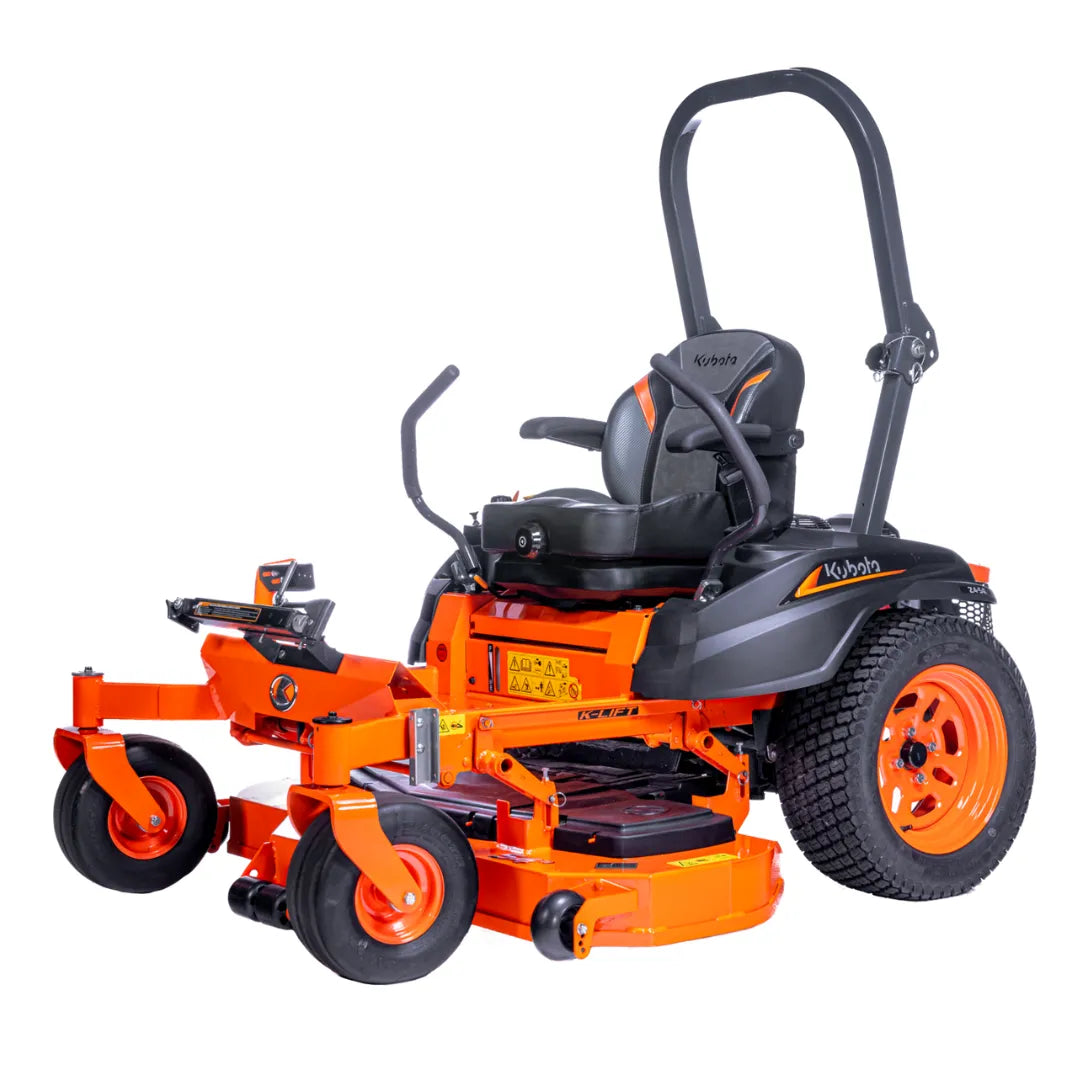

Kubota Z4-541 RD Zero Turn Lawnmower

Comfort first
The lever operation, seating position, foot plate and general vision from the seat makes these machines an operators dream. The key to comfort is not just making the seat deep padded and desirable, but also the positioning of the controls and the ease of operation.

Unrivalled cutting quality
It’s not just the ability to mow around obstacles which makes the Z4-541 such a desirable machine, but also the professional quality of the cut. The Z4 is able to provide a high quality cut even in difficult conditions with wet and dense grass. The cutting and mulching quality was the top priority criteria when designing, developping and testing the machine.

Made for Europe
Designed and tested for European grass and weather conditions, the Z4 ensures superior durability and performance – which means commercial-grade results.

Meets your needs
The Z4 is available in two deck versions—side discharge and rear discharge—both equipped with the option for a mulching kit, making it the ideal choice for tackling all types of grass and green areas.

Outstanding Comfort
The key to comfort is not just making the seat deep padded and desirable, but also the positioning of the controls and the ease of operation. With these crucial elements in mind, the layout design was always upmost at each stage of development.

WORKING COMFORT

• Comfortable seat with adjustment fore/aft for leg positioning to operate deck raise pedal
• Isolated wide and removable Floor Pan
• Foldable ROPS
• Improved K-Lift (50% Less effort)
• Larger Front Caster

ENGINE

• 4-cycle OHV petrol engine
• Cast aluminum crankcase and cylinder heads
• Air cooled
• 90° V-twin
• Electronic spark ignition
• Lightweight design
• Fuel tank capacity - 25.7 litres
• Easy access for checks and maintenance
• Combined filler and dipstick

DRIVELINE

• Motion lever drive control
• HST transmission with infinitely variable speed
• Max. speed 14 kph
• Zero turning radius
• Low profile drive wheels
• Parking brake
• 24 x 9.5 – 14 low profile tyres

MOWER DECK

• 54" Rear discharge deck
• Optional mulching kit
• Improved blade design for reduced noise and top cutting performance.
• Electro-magnetic PTO clutch engagement of the drive belt.
• K-lift deck raise / lower control
• Quick-dial deck height adjustment
• OCDC kit (Operator Control Discharge Chute kit)
• Floor panel removal for quick belts maintenance
