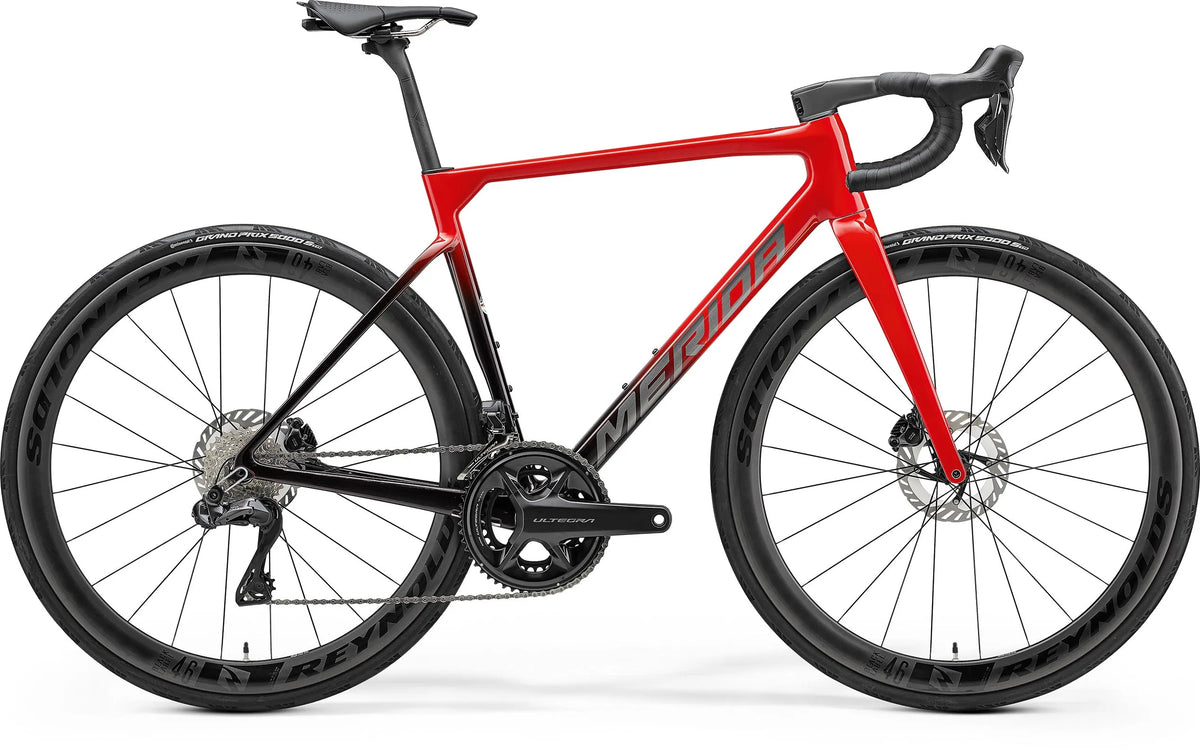

Merida Scultura 9000 - Red/Dark Red/Black
Finance Options
1/3
Product Highlights
- Size: 54cm
- Groupset: Shimano Ultegra Di2
- Colour: Passion Red/Dark Race Red (Black)
Merida Scultura 9000 - Red/Dark Red/Black is backordered and will ship as soon as it is back in stock.
Notify Me
Simply enter your email address and we will notify you when this product is back in stock
Pickup available at Moynehall Retail Park
Usually ready in 24 hours
Delivery and Shipping
Delivery and Shipping
At Clarkes of Cavan, we are passionate about getting your order to you quickly and safely and we understand it is important for you to know when your order will be delivered.
Free delivery on orders over €99 applies in most cases (Ireland), where a product is excluded from this it will be noted on the product page. Some items are large and cannot be sent for free. Standard delivery costs apply to all other countries.
You will be provided with tracking information so you can keep an eye on your order at all times. Delivery of Bulk items (Pallet) may take a day or two extra.
Return Policy
Return Policy
We offer an exchange or refund on goods purchased online, and returned 14 days after purchase.
Description
Description
Highlights:
- Superlight CF5 Carbon frame and fork
- Shimano Ultegra Di2 2 x 12 groupset
- Shimano Ultegra hydraulic disc brakes with Disc Cooler Technology
- Reynolds BL 46 Pro DB carbon wheelset with Continental GP5000S TR 28c tyres
- Fully integrated carbon cockpit
- Merida S-Flex carbon seat post
High end carbon CF5 framed road bike with Reynolds carbon wheelset and 2 x 12 Shimano Ultegra Di2 transmission and hydraulic disc brakes
Team Bahrain Victorious put the fifth generation Scultura thoroughly through its paces, winning mountain top stages of the Tour de France and the Vuelta a Espana before the bike was even launched. Gen 5 keeps the Scultura's fabled lightweight, agility and rider comfort focus and even manages to improve on both measures. The Scultura now incorporates learnings from the Reacto in terms of aerodynamics; they now share the same race proven geometry. Improving weight, comfort and aerodynamics requires plenty of engineering ingenuity. Round tubes are lighter than aero profiled tubes, fatter tyres are more comfortable but less aerodynamic. There are always compromises to be made. The new Scultura is the most aerodynamic ever and shows outstanding compliance, providing class-leading rider comfort. The marketing blurb suggests this helps keep the body fresh for the final sprint or ascent. A couple of mountain top, grand tour stage victories underline that point quite well!
| Category | Specification |
|---|---|
| Frame | CF5 V carbon – premium fibres for lightweight performance, race geometry, internal cable routing, 142x12mm axle, flat mount rear brakes with Disc Cooler, 1 1/2" to 1 1/4" headtube, Pressfit 86.5 BB, max tyre size 30c |
| Fork | Scultura CF5 Disc, full carbon, max tyre size 700x30C |
| Gears | 24-speed |
| Shifters | Shimano Ultegra Di2 (front & rear) |
| Front Derailleur | Shimano Ultegra Di2 |
| Rear Derailleur | Shimano Ultegra Di2 |
| Bottom Bracket | Shimano SM-BB72-41B, Pressfit 86.5 |
| Chain | Shimano M8100-12 |
| Chainset | Shimano Ultegra; 52-36 tooth chainset |
| Cassette | Shimano Ultegra R8101, 11-30T, 12-speed |
| Brake Levers | Shimano Ultegra |
| Front Brake | Shimano Ultegra hydraulic disc, Shimano CL800, 160mm |
| Rear Brake | Shimano Ultegra hydraulic disc, Shimano CL800, 160mm |
| Grips | Merida ROAD Expert |
| Handlebar | Team SL 1P Integrated; carbon; 380mm (XXS-XS-S), 400mm (M-L-XL) |
| Stem | Merida Team One-Piece Integrated carbon (XXXS-XS: 90mm, S: 100mm, M-L: 110mm, XL: 120mm) |
| Headset | Merida Team SL (OP-203 neck) |
| Saddle | Scratch M5 with V-mount adapter; includes Merida minitool |
| Seatpost | Merida Team SL; 27.2mm diameter; 15mm layback; Carbon; S-Flex |
| Wheel Size | 700c |
| Rims / Wheelset | Reynolds BL 46 Expert DB carbon, 41mm depth, 21mm inner width, tubeless ready |
| Hubs & Spokes | Integrated Reynolds BL 46 Expert DB wheelset |
| Front Tyre | Continental Grand Prix 5000S TR, 700x28C, tubeless ready |
| Rear Tyre | Continental Grand Prix 5000S TR, 700x28C, tubeless ready |
| Colour | Passion Red / Dark Race Red (Black) |
| Season | 2025 |
| Extras | Disc cooler (front & rear), Garmin mount + insert x2, GoPro/light mount, bottle cage |
