Honda TRX 520FE2 Video
Any Questions? Ask our Sales team.

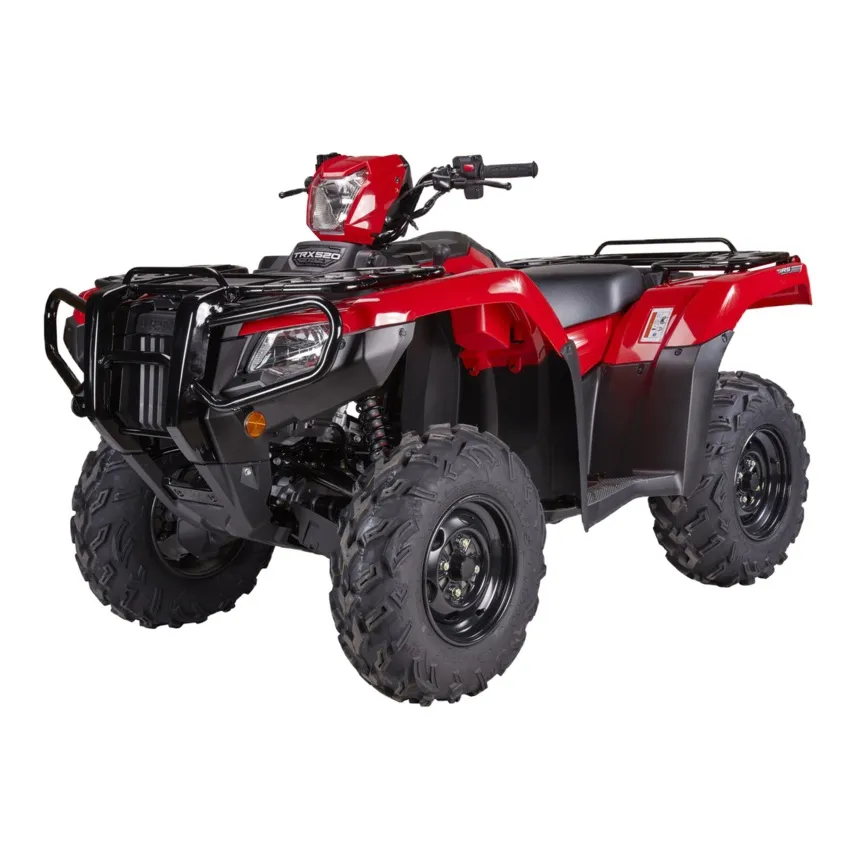

A premiere no-compromise work ATV. Equipped with a large 518cc engine, the TRX520FE2 is strong, powerful, and easy to use. With electric shift and easy reverse gear switch, the TRX520FE2 is made to help you get the jobs done.
The motor and updated mapping provides more power and torque where it’s used most - in the low end and midrange - to allow quicker acceleration, better ascending and improved hauling and towing. The Honda TraxLok system allows you to move between 2WD and 4WD mode with just the flick of a switch. Front diff lock maximises traction over very rough terrain. The TRX520FE2 boasts new styling, an even more powerful assist headlight and increased storage compartments.
Elsewhere, the swing arm-style rear suspension is tried and proven on Irish farms, easily serviceable and with fewer moving parts it’s made for durable running in harsh conditions. Towing is made more comfortable by moving the tow hitch onto the swingarm. A bulletproof electric shift machine loved by Ireland.
Utility Box - A 1.9-litre utility box with a weatherproof cover is added to the front deck.
Cargo Racks - Newly engineered front and rear cargo racks provide more loading options and accept new Honda Pro Connect accessories for smooth integration.
A-Arm guards - New guards extend the full length of the lower suspension arms for full coverage of the driveshaft and outboard CV joints.
Engine capacity - New larger-displacement 518cc engine (a 43cc displacement increase) with updated mapping provides stronger power and torque where it's used most—in the low end and midrange—for quicker acceleration, better ascending and improved hauling and towing.
Classification | Heavy duty ATV |
Engine | 518cc liquid cooled, longitudinally mounted single-cylinder four-stroke |
Carburation | PGM-FI 36mm |
Ignition | Full-transistorized with electronic advance |
Starter | Electric |
Transmission | Manual ESP push-button; 5 speed and reverse |
Drive | Direct front and rear driveshafts with TraxLok™ and locking front differential. |
Front Suspension | Independent double-wishbone; 185mm travel |
Rear Suspension | Swingarm with single shock; 185mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 160mm sealed mechanical drum |
Front tyres | 25 x 8-12 |
Rear tyres | 25 x 10-12 |
Fuel Capacity (l) | 17.7L, incl. 5.9L res. |
Bore x Stroke (mm) | 96.0 x 71.0 |
Dimensions - Length (mm) | 2100 |
Dimensions - Width (mm) | 1200 |
Dimensions - Height (mm) | 1210 |
Wheelbase (mm) | 1270 |
Seat Height (mm) | 870 |
Ground Clearance (mm) | 190 |
Towing Capacity (kg) | 384 |
A premiere no-compromise work ATV. Equipped with a large 518cc engine, the TRX520FE2 is strong, powerful, and easy to use. With electric shift and easy reverse gear switch, the TRX520FE2 is made to help you get the jobs done.
The motor and updated mapping provides more power and torque where it’s used most - in the low end and midrange - to allow quicker acceleration, better ascending and improved hauling and towing. The Honda TraxLok system allows you to move between 2WD and 4WD mode with just the flick of a switch. Front diff lock maximises traction over very rough terrain. The TRX520FE2 boasts new styling, an even more powerful assist headlight and increased storage compartments.
Elsewhere, the swing arm-style rear suspension is tried and proven on Irish farms, easily serviceable and with fewer moving parts it’s made for durable running in harsh conditions. Towing is made more comfortable by moving the tow hitch onto the swingarm. A bulletproof electric shift machine loved by Ireland.
Utility Box - A 1.9-litre utility box with a weatherproof cover is added to the front deck.
Cargo Racks - Newly engineered front and rear cargo racks provide more loading options and accept new Honda Pro Connect accessories for smooth integration.
A-Arm guards - New guards extend the full length of the lower suspension arms for full coverage of the driveshaft and outboard CV joints.
Engine capacity - New larger-displacement 518cc engine (a 43cc displacement increase) with updated mapping provides stronger power and torque where it's used most—in the low end and midrange—for quicker acceleration, better ascending and improved hauling and towing.
Classification | Heavy duty ATV |
Engine | 518cc liquid cooled, longitudinally mounted single-cylinder four-stroke |
Carburation | PGM-FI 36mm |
Ignition | Full-transistorized with electronic advance |
Starter | Electric |
Transmission | Manual ESP push-button; 5 speed and reverse |
Drive | Direct front and rear driveshafts with TraxLok™ and locking front differential. |
Front Suspension | Independent double-wishbone; 185mm travel |
Rear Suspension | Swingarm with single shock; 185mm travel |
Power Steering | Yes |
Front Brakes | 190mm dual hydraulic discs |
Rear Brake | 160mm sealed mechanical drum |
Front tyres | 25 x 8-12 |
Rear tyres | 25 x 10-12 |
Fuel Capacity (l) | 17.7L, incl. 5.9L res. |
Bore x Stroke (mm) | 96.0 x 71.0 |
Dimensions - Length (mm) | 2100 |
Dimensions - Width (mm) | 1200 |
Dimensions - Height (mm) | 1210 |
Wheelbase (mm) | 1270 |
Seat Height (mm) | 870 |
Ground Clearance (mm) | 190 |
Towing Capacity (kg) | 384 |
