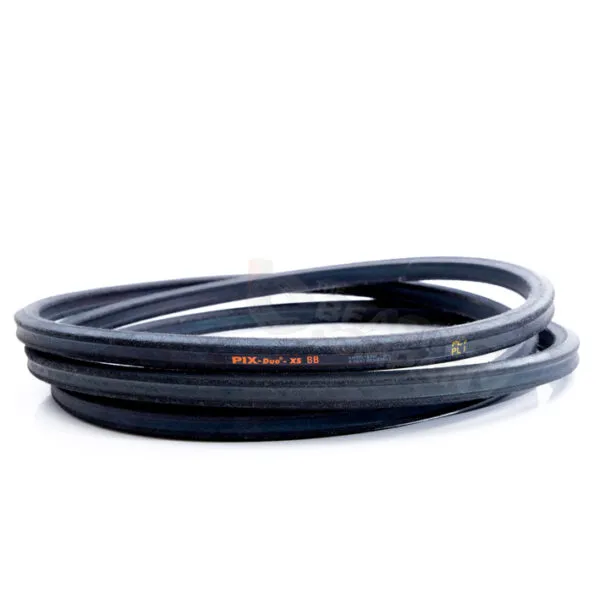

The BB124 Hexagonal Double-Sided Belt is a superior solution for serpentine drive systems requiring power transmission on both sides of the belt. Designed with a unique hexagonal profile, this belt ensures smooth, efficient operation, even in systems with multiple reverse bends or sudden directional changes. Manufactured using high-quality materials, the belt provides excellent torque, strength, and long-lasting durability.
Key Features
- Dual-Side Power Transmission: Transmits power effectively from both sides of the belt, ensuring maximum efficiency.
- Enhanced Durability: Built with high-tenacity, low-stretch tension cords and wear-resistant neoprene rubber for extended service life.
- Flexibility for Serpentine Drives: Specially designed to handle reverse bends and sudden directional changes in belt travel.
- Temperature Resistance: Operates efficiently in a wide range of temperatures, from -18°C to +80°C.
- Antistatic & Oil Resistant: Resistant to oil, heat, and static buildup, making it ideal for tough industrial environments.

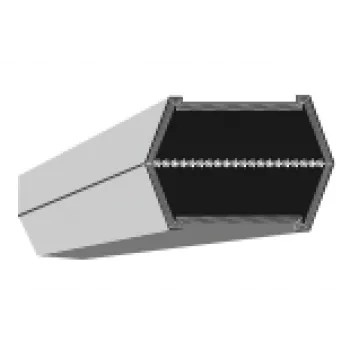

Constructional Details
- Tension Member: High tenacity, low-stretch tension cords ensure reliable power transmission.
- Compression Layer: Made with high modulus compression rubber for enhanced strength.
- Outer Fabric: Bias-cut, neoprene rubberized polyester cotton fabric provides excellent wear resistance and stability.
Applications
The BB124 Hexagonal Double-Sided Belt is widely used in a range of industries, including:
- Agricultural Machinery: Combines, tractors, and other farming equipment.
- Rice Mills & Husker Machines: Designed to handle demanding processing conditions.
- Poultry Equipment: Perfect for feather pickers and other poultry machinery.
- Industrial Systems: Dyeing units and other systems requiring serpentine drive solutions.
Technical Specifications
| Specification |
Details |
| Belt Number |
BB124 |
| Inside Length |
3149mm |
| Pitch Length |
3193mm |
| Width |
17mm |
| Depth |
13mm |
| Weight |
0.486 kg |
| Section |
BB |
| Temperature Range |
-18°C to +80°C |
|
|
| |
|
