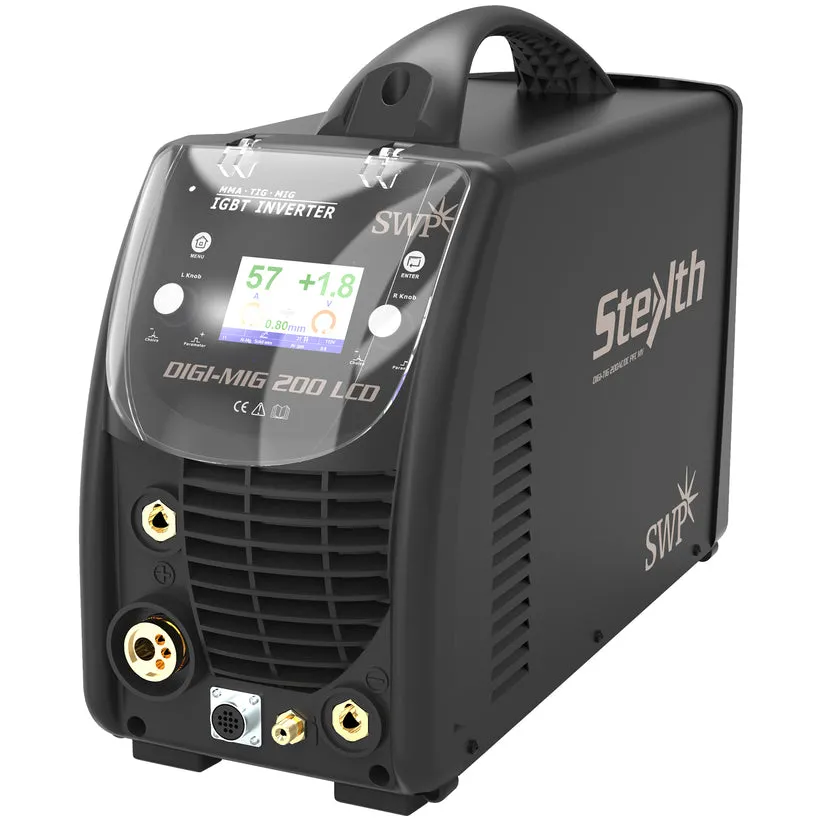

Stealth Digi-Mig 200 LCD PFC Multiprocess MIG Welding Machine 9005H – 110V/230V, Multi-Process, LCD Display

The Stealth Digi-Mig 200 LCD PFC Multiprocess Welding Machine is designed for precision, efficiency, and versatility, offering MIG, TIG, and MMA welding in a compact, dual-voltage unit. With its high-resolution LCD display, waveform control, and PFC technology, this air-cooled welder ensures stable arc performance and optimal energy efficiency.

Key Features & Benefits:

• 260,000 True-Color LCD Display – Provides crystal-clear welding parameters for real-time adjustments.
• Dual Voltage (110V/230V) Compatibility – Expands usability across multiple power sources.
• Power Factor Correction (PFC 0.99) – Improves energy efficiency and reduces power loss.
• Advanced Waveform Control – Ensures arc stability, even at low currents.
• Multi-Process Welding – Supports MIG, TIG, and MMA welding for maximum versatility.
• Temperature, Voltage & Current Sensors – Enhances machine protection and safety.
• Capable of Loading Up to 5kg Spool – Minimizes downtime and maximizes productivity.
• Air-Cooled System with IP23 Protection – Designed for industrial durability.
• 80% Efficiency Rating – Reduces energy consumption while maintaining high performance.
• M25-3 Torch & 2068 Regulator Included – Ready for immediate use.

Specifications:

• Input Power Voltage: 110V/230V ±10%
• Frequency: 50/60 Hz
• Effective Current (A):
  • 110V: MIG (23.4A), TIG (17.7A), MMA (17.7A)
  • 230V: MIG (17.7A), TIG (13.9A), MMA (20.2A)
• Rated Input Current (A):
  • 110V: MIG (37A), TIG (28A), MMA (28A)
  • 230V: MIG (28A), TIG (22A), MMA (32A)
• Duty Cycle (40°C, 10 min):
  • MIG: 40%@140A, 60%@115A, 100%@90A
  • TIG: 40%@100A, 60%@85A, 100%@65A
  • MMA: 40%@200A, 60%@165A, 100%@130A
• No Load Voltage (V): 67 (MIG) / 14 (TIG/MMA)
• Welding Current Range (A):
  • MIG 110V: 25-140A
  • MIG 230V: 25-200A
• Welding Voltage Range (V):
  • MIG 110V: 10-21V
  • MIG 230V: 10-27V
• Efficiency: 80%
• Power Factor: 0.99
• Cooling System: Air-Cooled
• Protection Class: IP23
• Insulation Class: H
• Overall Dimensions: 560 x 220 x 410mm
• Weight: 15.5kg

Accessories Included:

✔ M25-3 MIG Torch
✔ 2068 Regulator
✔ 3m Argon Hose
✔ 3m Earth Return Lead

Standards & Certifications:

• EN 60974/1​

Ideal Applications:

• Automotive & Bodywork Welding
• General Fabrication & Manufacturing
• Industrial & Workshop Welding
• On-Site Welding with Dual Voltage Flexibility

With advanced features, exceptional efficiency, and multiprocess versatility, the Stealth Digi-Mig 200 LCD PFC Welding Machine is the ultimate tool for professionals seeking precision and performance.
