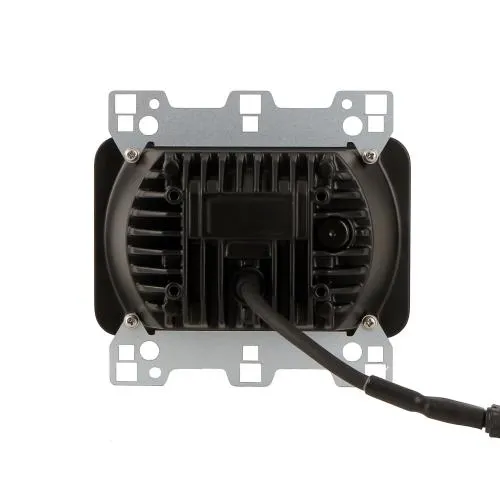

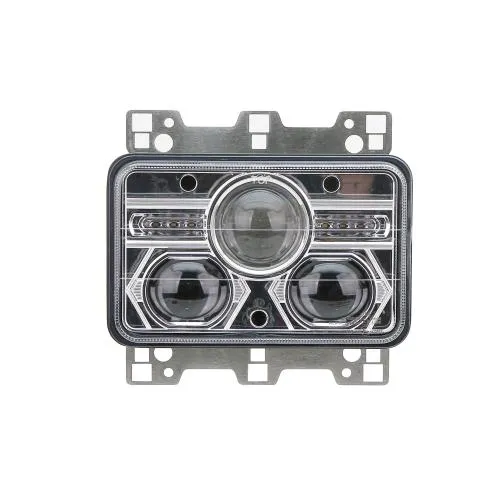

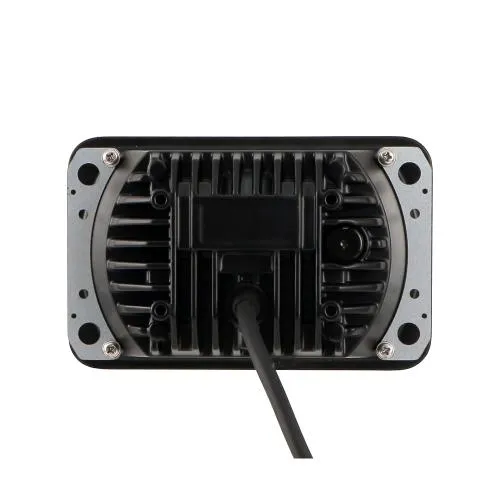

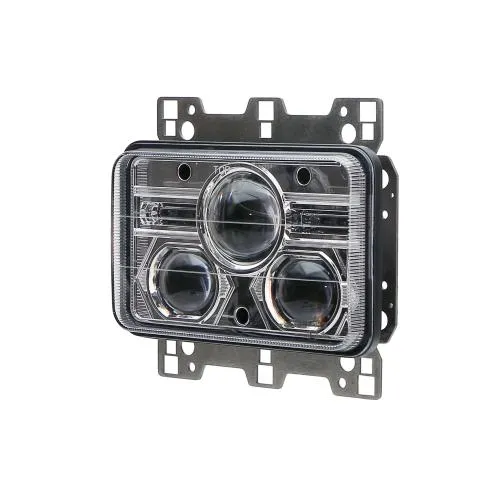

102 Watt LED High & Low Beam Headlight with DRL, 5760 Lumen - LG831 for Tractors John Deere, Case, New Holland, Massey, David Brown, Landini, Deutz and more.
General Characteristics
- Housing: Powder Coated AluminIum
- 60w High Beam
- 30w Low Beam
- 12w DRL ( Daytime Running Light)
- 9/32V
- 50,000h
- E Mark Certified
- IP68
- ECE R10, ECE R112, ECE R148 Approved
- EMC - CISPR25 Class 4 (Radio Frequency Suppression)
- Supplied With H4 Plug & Play Connection
- Dimensions 165 x 107 x 80mm
Technical Light Properties
- Light color: Cold white
- Ireland / UK Headlight
- Color temperature: 6000K
ELECTRICAL CHARACTERISTICS
- Nominal lamp power: 60 Watt
- 60W high intensity CREE XTE LEDs
- Suitable for 9-32V DC
- 5,760 lumens
- Lux Reading: 50Mtr @ 12Lux
- Lux Reading: 186Mtr @ 1Lux
- Vibration Test to 15G
DIMENSIONS IN MM.
- Lamp width: 165 mm
- Lamp height: 107 mm
- Lamp thickness: 80 mm
6014409519593
At Clarkes of Cavan, we are passionate about getting your order to you quickly and safely and we understand it is important for you to know when your order will be delivered.
Delivery Cost & Times
Free delivery on orders over €99 applies in most cases (Ireland), where a product is excluded from this it will be noted on the product page. Some items are large and cannot be sent for free. Standard delivery costs apply to all other countries.
We are proud of our fast delivery process. If your order is placed before 2pm we will make sure that it is dispatched the same day*. You will be provided with tracking information so you can keep an eye on your order at all times. Delivery of Bulk items (Pallet) may take a day or two extra.
| Country |
Delivery Cost |
Delivery Time |
| Ireland |
€8.50 - Free over €99 excluding bulk items |
1-2 Business Days |
| United Kingdom |
€15.50 |
3-5 Business Days |
| Austria |
€18.45 |
5-7 Business Days |
| Australia |
€68.40 |
7-10 Business Days |
| Belgium |
€18.45 |
5-7 Business Days |
| Bulgaria |
€18.45 |
7-10 Business Days |
| Croatia |
€18.45 |
7-10 Business Days |
| Cyprus |
€18.45 |
7-10 Business Days |
| Czech Republic |
€18.45 |
5-7 Business Days |
| Denmark |
€18.45 |
5-7 Business Days |
| Estonia |
€18.45 |
7-10 Business Days |
| Finland |
€18.45 |
7-10 Business Days |
| France |
€18.45 |
3-5 Business Days |
| Germany |
€18.45 |
3-5 Business Days |
| Greece |
€18.45 |
7-10 Business Days |
| Hungary |
€18.45 |
5-7 Business Days |
| Iceland |
€18.45 |
7-10 Business Days |
| Italy |
€18.45 |
5-7 Business Days |
| Latvia |
€18.45 |
7-10 Business Days |
| Lithuania |
€18.45 |
7-10 Business Days |
| Luxembourg |
€18.45 |
5-7 Business Days |
| Malta |
€18.45 |
7-10 Business Days |
| Netherlands |
€18.45 |
3-5 Business Days |
| Norway |
€18.45 |
7-10 Business Days |
| Poland |
€18.45 |
5-7 Business Days |
| Portugal |
€18.45 |
5-7 Business Days |
| Romania |
€18.45 |
7-10 Business Days |
| Slovakia |
€18.45 |
5-7 Business Days |
| Slovenia |
€18.45 |
7-10 Business Days |
| Spain |
€18.45 |
5-7 Business Days |
| Sweden |
€18.45 |
7-10 Business Days |
| Switzerland |
€18.45 |
7-10 Business Days |
| United States |
€88.45 |
10-15 Business Days |
Some items we sell will take more time because of size and dispatch location. This will be noted on the product page or on checkout.
Tracking Information
When your order is send you will be provided with tracking information from the relevant courier. This tracking information will be sent to the email provided when on the account registered, or the email used in the checkout process.
Clarkes of Cavan use An Post, UPS, Royal Mail and DSV pallet delivery.
Returns Policy
For full information on our returns policy please visit our refund and returns policy page.
Need Help?
If you still need further assistance regarding your delivery please contact the online department on 049 433 2166 or via email at online@clarkesofcavan.ie
JOHN DEERE : AL75338 & RE56964,
MASSEY FERGUSON :1693943M93,
LANDINI :1693943M93 & 3542817M91 & 1333291C1
NEW HOLLAND: 81869794, 83999518, F0NN13006AB,
DAVID BROWN K300208,
HELLA: 003177001,HELLA: 1AB003177006
AGCO X830160039000, BMW 4188712,BOSCH 0301709100,
CASE IH 1333291C1,CASE IH 7723461,CATERPILLAR 772346
FAUN 99707723461,FENDT X830160039000,HELLA 1AB003177007,HELLA 1AB003177008,HELLA 1AB006277087
HELLA 1AB006277088,JOHN DEERE AL75338,JOHN DEERE RE56964,JOHN DEERE AZY75360,KLOKKERHOLM 96000250
LANDINI 1333291C1,MACK 438179566,TRIFA 7358935,VALEO 082395,DAVID BROWN K300208
SUPERSEDES ORIGINAL NUMBER:
John Deere: AL152328, AL152329, RE269110
CASE: 1333291C1, 85651C91
DEUTZ: 21/181-74, 20/181-22
NH 82014422
NH 82014423
COMPATIBLE WITH THE FOLLOWING:
John Deere
5070 M 5080 M 5080 R 5085 M 5090 M 5090 R (To 2014) , JD 5100 M , JD 5100 R (Until 2014) , 5620 , 5720 , 5820
