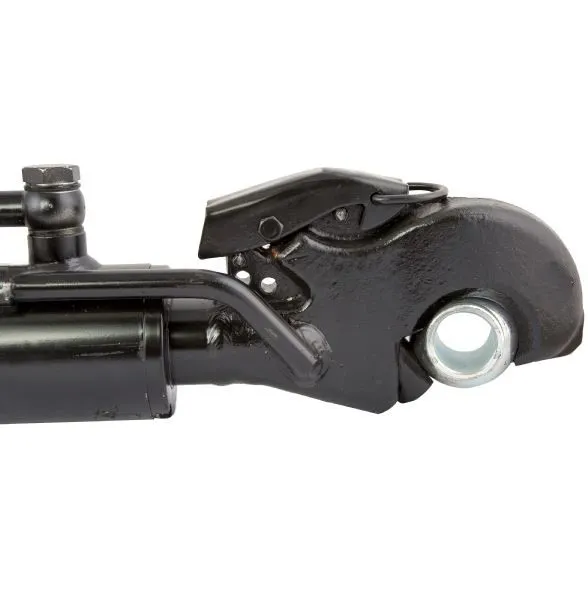

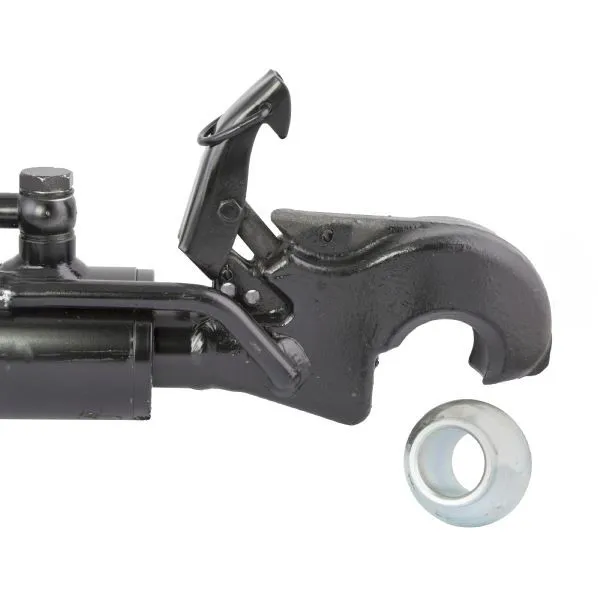

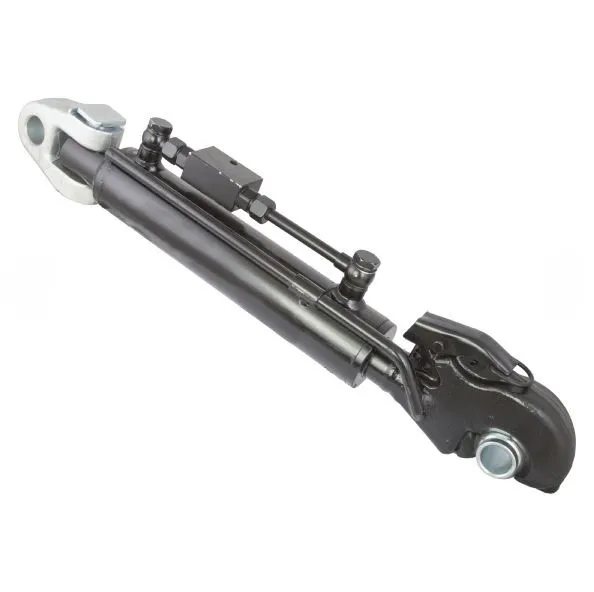

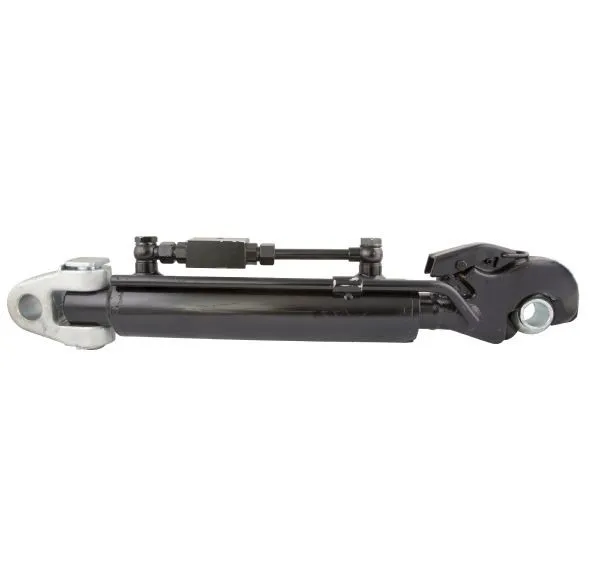

The G19932 Hydraulic Top Link 22in with Anti Creep & Knuckle is a Genfitt standard knuckle hydraulic top link designed to deliver outstanding performance in agricultural and industrial settings. Equipped with an anti-creep safety device, this top link prevents accidents or equipment damage in the event of a hydraulic hose burst, providing extra peace of mind during operation. Its heavy-duty construction, featuring a 28.5mm knuckle eye on the fixed end and a quick attach ball on the rod end, ensures durability and ease of use.
With a barrel diameter of 60mm (inner) and 70mm (outer), this top link offers superior strength and stability. The open center measures 765mm (30in) and the closed center measures 560mm (22in), making it suitable for a variety of machinery and applications. Finished with a black primer, this hydraulic top link is built to withstand tough conditions and resist corrosion.
Key Specifications:
- Model: G19932
- Barrel Diameter: 60mm inner, 70mm outer
- Open Center Length: 765mm (30in)
- Closed Center Length: 560mm (22in)
- Maximum Load: 1,100kg
- End Type 1: 28.5mm knuckle eye
- End Type 2: 25.4mm quick attach ball
- Rod Diameter: 40mm
- Weight: 11.5kg
- Finish: Black primer
Features:
- Anti-Creep Safety Device: Prevents damage or injury in case of hose failure by preventing the cylinder from creeping under load.

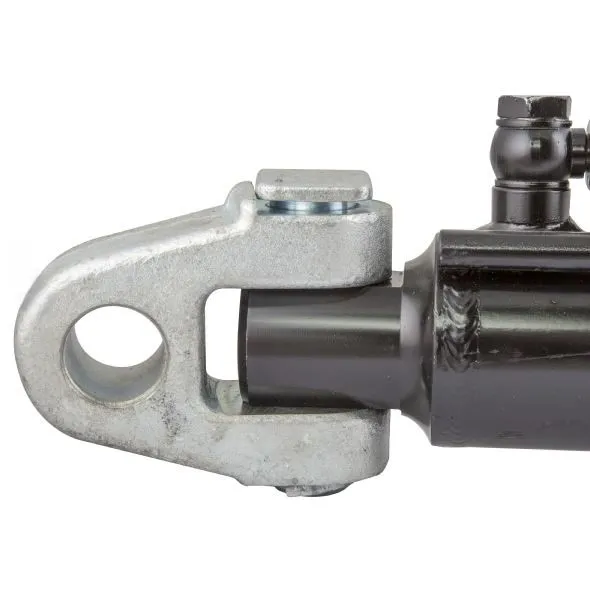

- Knuckle Eye on Fixed End: 28.5mm knuckle eye for a secure connection.
- Quick Attach Ball on Rod End: 25.4mm quick attach ball for ease of use and fast adjustments.
- Durable Construction: Heavy-duty barrel and rod made for extreme conditions, with a black primer finish to resist corrosion.
- High Load Capacity: Capable of supporting up to 1,100kg, making it suitable for demanding tasks.
Applications:
- Agricultural Equipment: Ideal for tractors and other agricultural machinery where heavy-duty hydraulic top links are needed.
- Industrial Machinery: Suitable for use in a variety of industrial settings requiring reliable hydraulic components.
- Construction Equipment: Can be used in construction machinery for lifting and adjusting implements.
