General Characteristics:
Application: LED Trailer Tail Light Combination
Direction: Universal Tail Light
Stop/Tail/Dynamic Indicator /Fog/Reverse/ Reflector
9-30v Application
Built-in dynamic Indicator
50,000h / E Mark Certified / IP68
ECE R10, R3, R6, R7, R23, R38, R91 Approved
EMC - CISPR25 Class 4 (Radio Frequency Suppression)
Supplied with socket & 50cm of cable
Technical Light Properties:
Light Colour: Amber/ Red/ White
Colour temperature: 6000K On Reverse
Electrical Characteristics:
High intensity CREE XTE LEDs
Suitable for 9-30V DC
Vibration Test to 15G

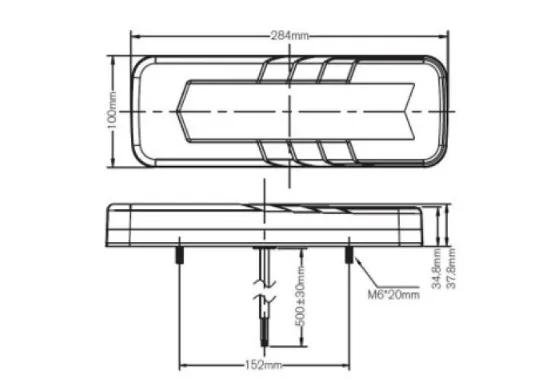

Dimensions:
Lamp width: 284 mm
Lamp height: 100 mm
Lamp thickness: 32 mm
Wiring Diagram:
BLACK = EARTH BROWN = TAIL RED = BRAKE YELLOW = INDICATOR BLUE = REVERSE GREEN = FOG
