Centre mounted suspension and up to 125° vertical transport position.

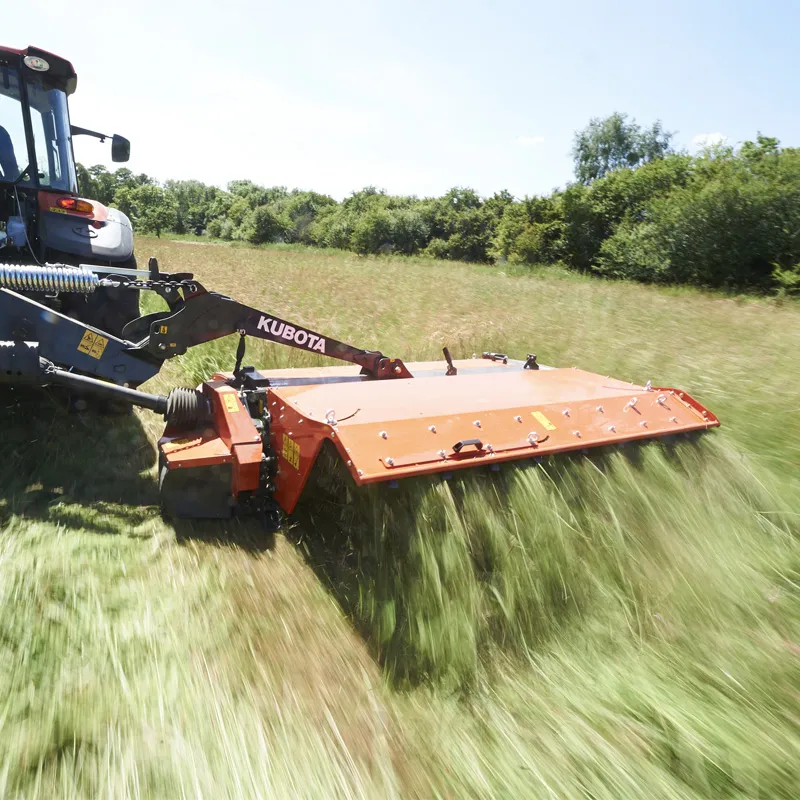

Kubota DMC6024, DMC6028 and DMC6032 comes in working widths of 2.4, 2.8 and 3.2m. They are fitted with the Kubota cutter bar with a slim design for improved cutting performance. The mowing units are suspended in the centre of gravity via a large suspension spring. This design provides an even weight distribution across the entire mowing width, as well as a constant, faster and more precise adaptation to ground contours. For greater operator comfort, ground pressure of the large suspension spring is set hydraulically from the tractor cab. On the hydraulic version the tension on the large suspension spring, which controls the ground pressure, is adjusted hydraulically, to increase or lower pressure.
The Advantages:
Available with hydraulic spring adjustment.
Centre mounted spring suspension
2.4, 2.8 and 3.2m working width
Nylon tine or roller conditioning
Vertical transport solution
600/900 rpm conditioner rotor
Kubota NonStop BreakAway system
Technical specifications
Working Width
No of Discs
Conditioner
Power Req.
DMC6024N
2.40m
6 disc
Nylon
50kW/70hp
DMC6028N
2.80m
8 disc
Nylon
55kW/80hp
DMC6028R
2.80m
8 disc
Roller
55kW/80hp
DMC6032N
3.20m
8 disc
Nylon
65kW/90hp
Centre mounted suspension and up to 125° vertical transport position.
Kubota DMC6024, DMC6028 and DMC6032 comes in working widths of 2.4, 2.8 and 3.2m. They are fitted with the Kubota cutter bar with a slim design for improved cutting performance. The mowing units are suspended in the centre of gravity via a large suspension spring. This design provides an even weight distribution across the entire mowing width, as well as a constant, faster and more precise adaptation to ground contours. For greater operator comfort, ground pressure of the large suspension spring is set hydraulically from the tractor cab. On the hydraulic version the tension on the large suspension spring, which controls the ground pressure, is adjusted hydraulically, to increase or lower pressure.
